Model:

ML1501

Interface size:

4 points (G1/2)

Working voltage range:

DC3.5~24V

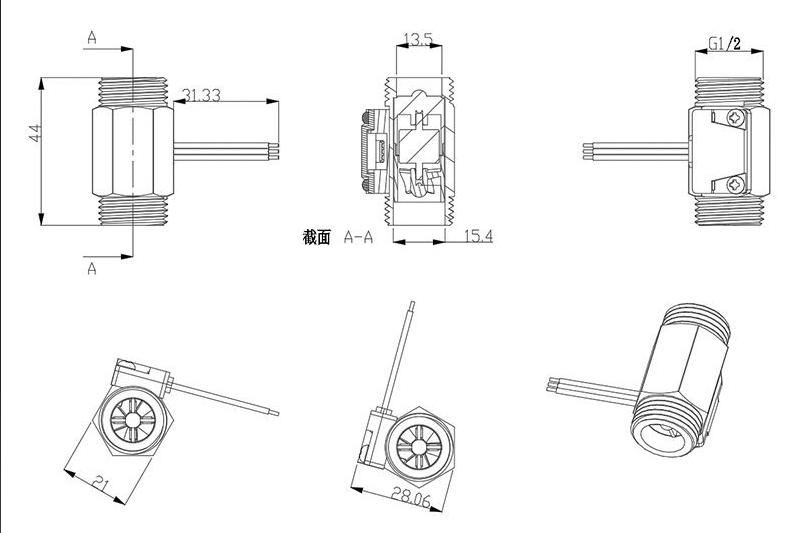

Inner diameter/outer diameter:

Inner diameter inlet 15.4, outlet 13.5mm/outer diameter 20.5mm

Thread length:

9.3mm

texture of material:

Copper/chrome plated/stainless steel (please consult customer service for details)

Water pressure resistance:

≤1.75MPa

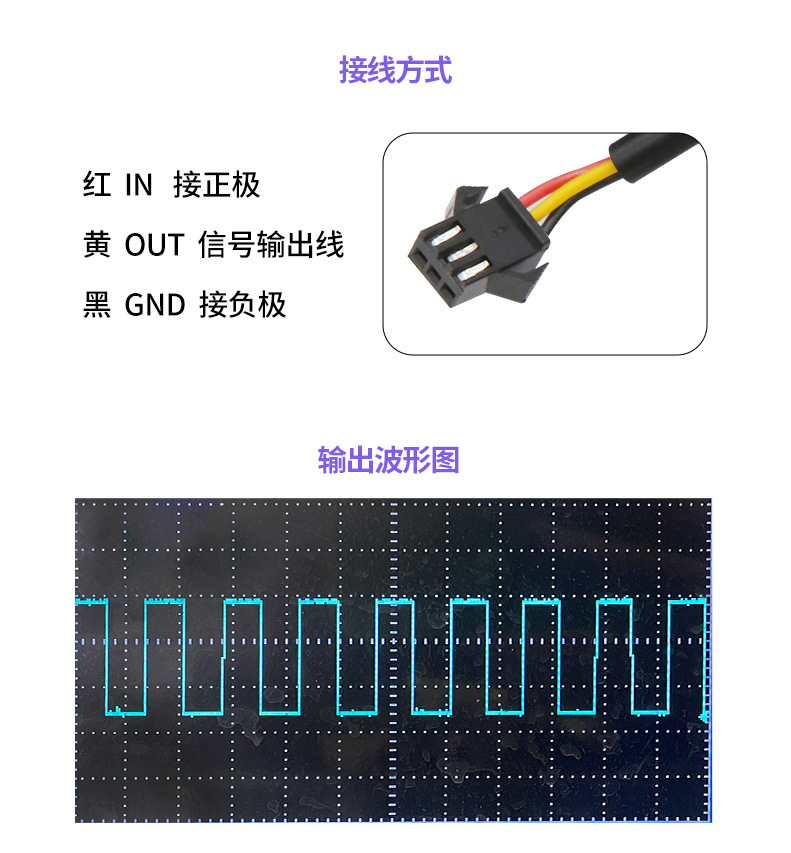

Output pulse high level:

>DC4.7V (input voltage DC5V)

Output pulse duty cycle:

50%±10%

Insulation resistance:

>100MΩ

Flow range:

[Within 1-25L \ MIN] ± 3%

Sealing performance:

Close each hole and conduct a 1.7Mpa water pressure test for 1 minute

Pulse frequency:

No leakage or deformation phenomenon
