Hall flow sensor
mini hall water flow sensor for coffee dispenser beverage dispenser市 场 价： ￥0元/个
优 惠 价： ￥0元/个
Advantage of hall flow meter：
- 1. Cheap price.
- 2. Easy to install and easy operate
- 3. Accuracy 3%
- Price: 1000+ PCS, USD1.9/PC

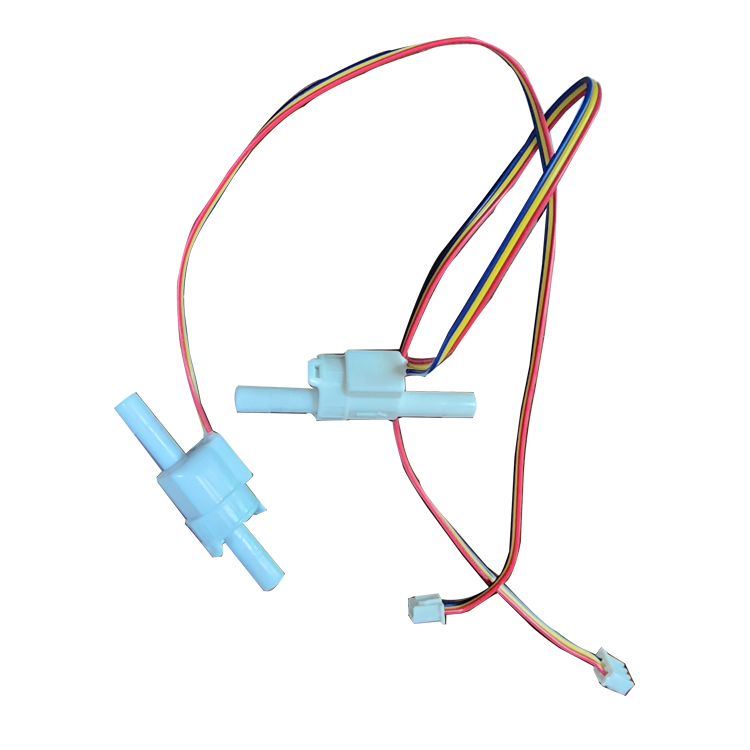

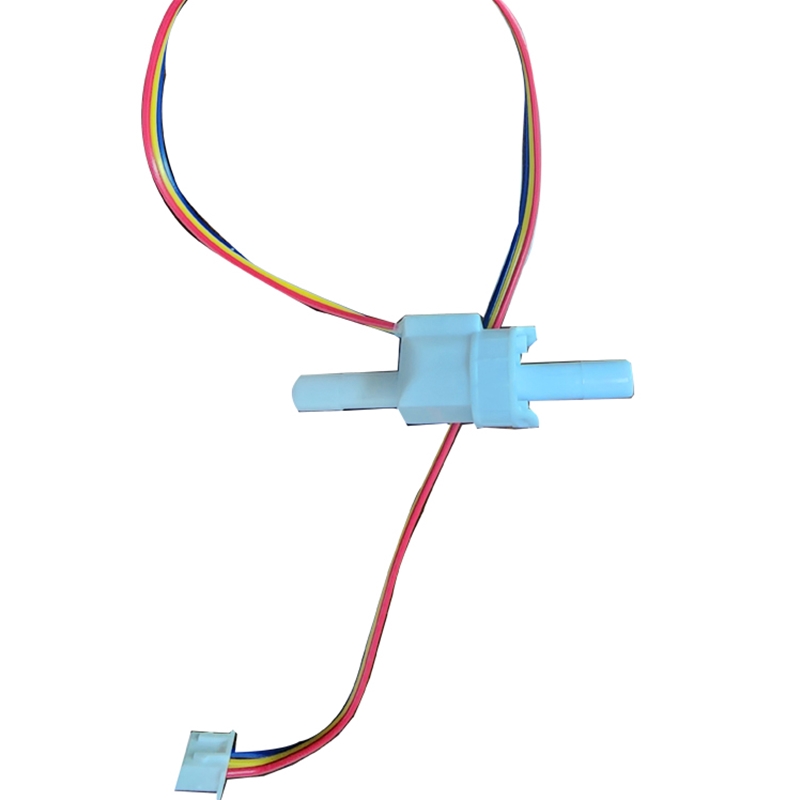

mini hall water flow sensor for coffee dispenser beverage dispenser
The water flow sensor mainly consists of a copper valve body, a water flow rotor component, and a Hall sensor.
Installed at the inlet end of the water heater, it is used to detect the inlet flow rate. When water passes through the water
flow rotor component, the magnetic rotor rotates and the speed changes with the flow rate. The Hall sensor outputs
corresponding pulse signals, which are fed back to the controller. The controller determines the size of the water flow rate and
adjusts it accordingly.
I: Parameters
model:
YF-TM02
Voltage resistance:
<0.8mpa
Working voltage range:
DC3.5-24V
Voltage resistance:
<0.8mpa
Insulation resistance:
>100MQ
Load capacity:
<10MA (DC5V)
Usage humidity range:
35%~90% RH (frost free state)
Temperature range for use:
0~80°C
Output pulse high level:
>DC 4.5V (input voltage DC5V)
Output pulse low level:
<DC0.5V (input voltage DC5V)
Flow range:
0.3~4L/min soil 3%; 0.05-1L/min ± 3%
Pulse characteristics:
Inner diameter 2.5mm (HZ)=[43 "Q] ± 2% (horizontal test) That is, 2580 pulses per liter of water.
Inner diameter:
1.2mm (HZ)=[86 "Q] soil 2% (horizontal test)
That is, 15160 pulses per liter of water.

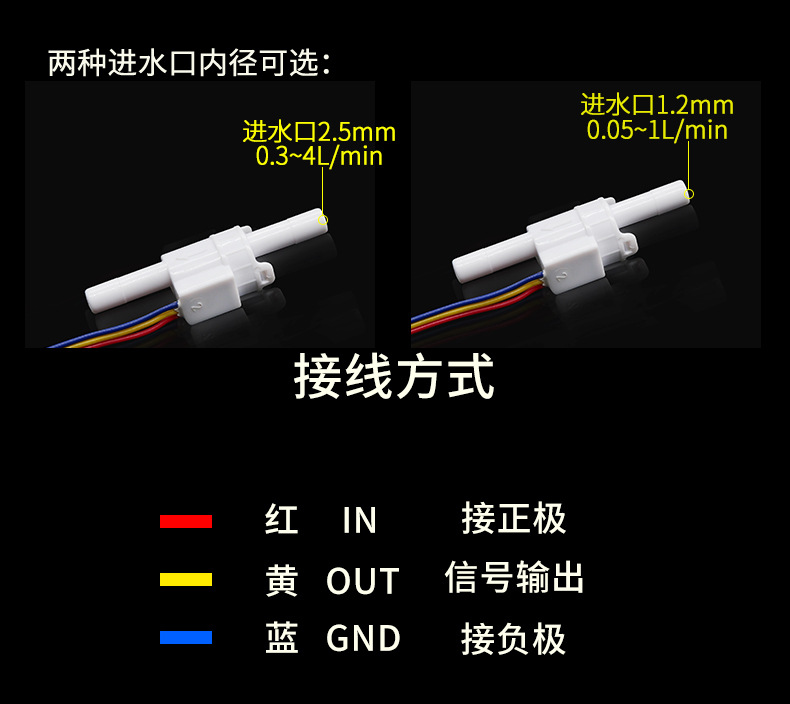

III: Wire and output
