Ultrasonic sensor

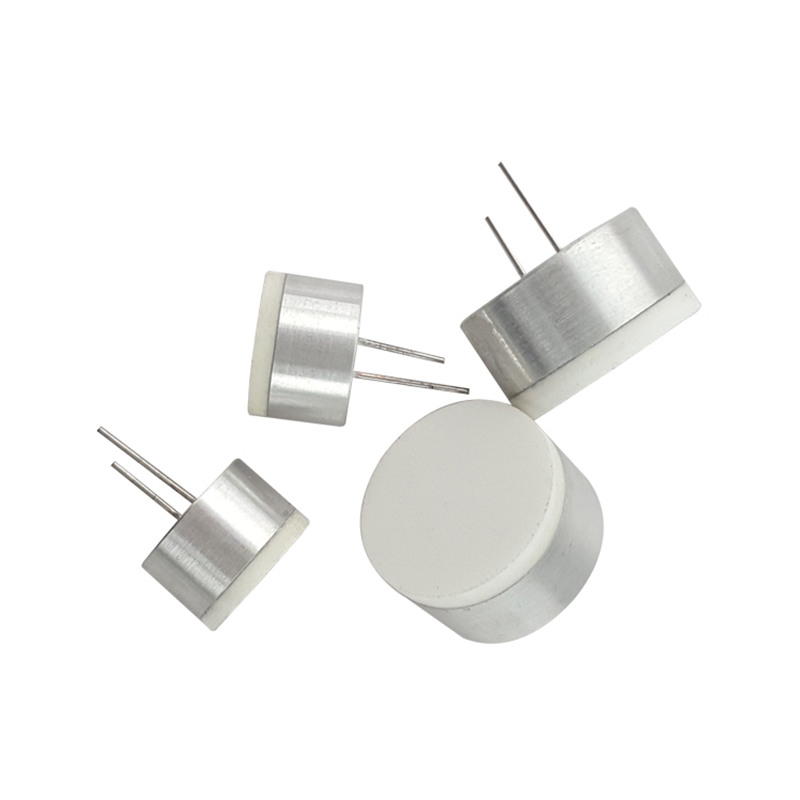

300K distance ultrasonic transducer市 场 价： ￥0元/个
优 惠 价： ￥0元/个
General Specifications：
- Center frequency（kHz）：300KHZ±4%
- Band width：24kHz
- Measurement distance：0.08—0.6M
- Blind zone：＜0.08M
- Work temperature：-20～80℃
- Protection class：IP65
- Housing materail：Aluminum alloy
- Price: 500+ PCS, USD8.35/PC
300K distance ultrasonic transducer
Parameters：
Model
AD0300K1
Center frequency（kHz）
300KHZ±4%
Band width
24kHz
Overall sensitivity
0 dB=18 Vp-p；Pulses：50；Length：15cm
-66dB min
Measurement distance
0.08—0.6M
Blind zone
＜0.08M
Beam angle （-3dB）
7±2°
Static capacity
250PF±20%
Minimum resistance
500Ω±30%
Max work voltage
＜300V
Work temperature
-20～80℃
Protection class
IP65
Housing materail
Aluminum alloy
The above tests were conducted in 25 ° environment。
Frequency-phase

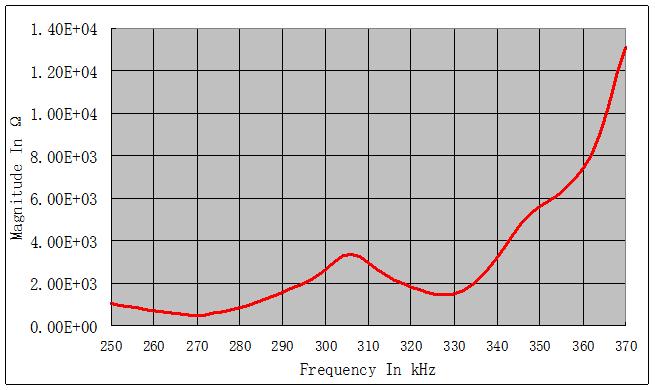

Frequency-resistance
