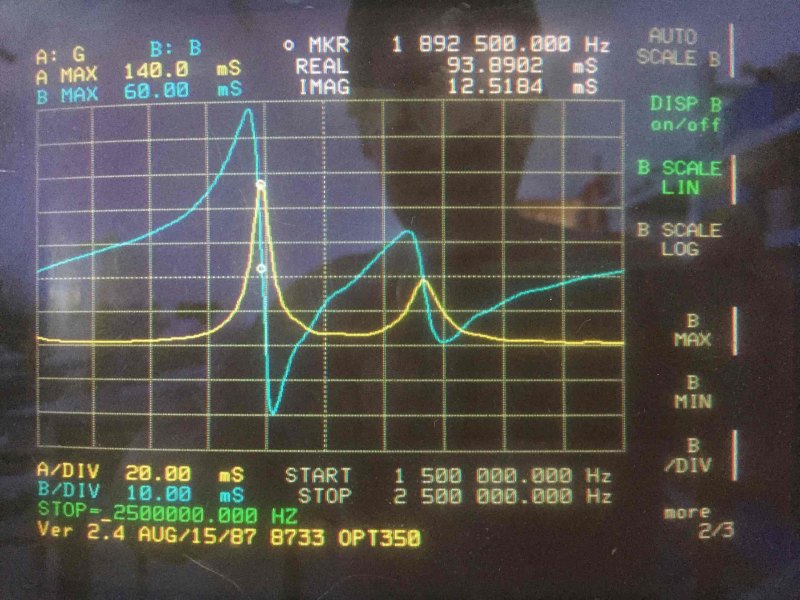

Frequency-resistance Frequency-phase
| Center frequency(kHz) | 2.00MHZ±4% |
|---|---|
| Band width(-6dB) | 10% |
| Overall Sensitivity 0 dB=3 Vp-p;Pulses:5;Length:8cm | -25dB min |
| Distance | 1.0M |
| Blind Zone | 3cm |
| Beam angle(-3dB) | 3° |
| Static capacity | 2300PF±20% |
| Minimum resistance | 100Ω±30% |
| Max work voltage | <200V |
| Work temperature | 4~50℃ |
| Housing material | PPS |
| Protection class | IP68 |

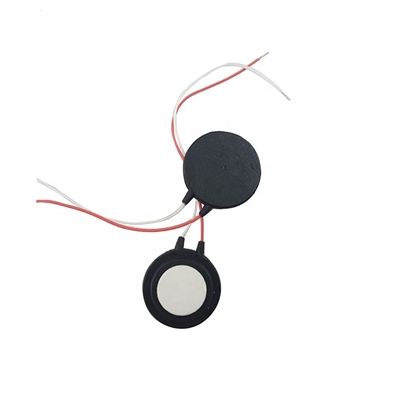

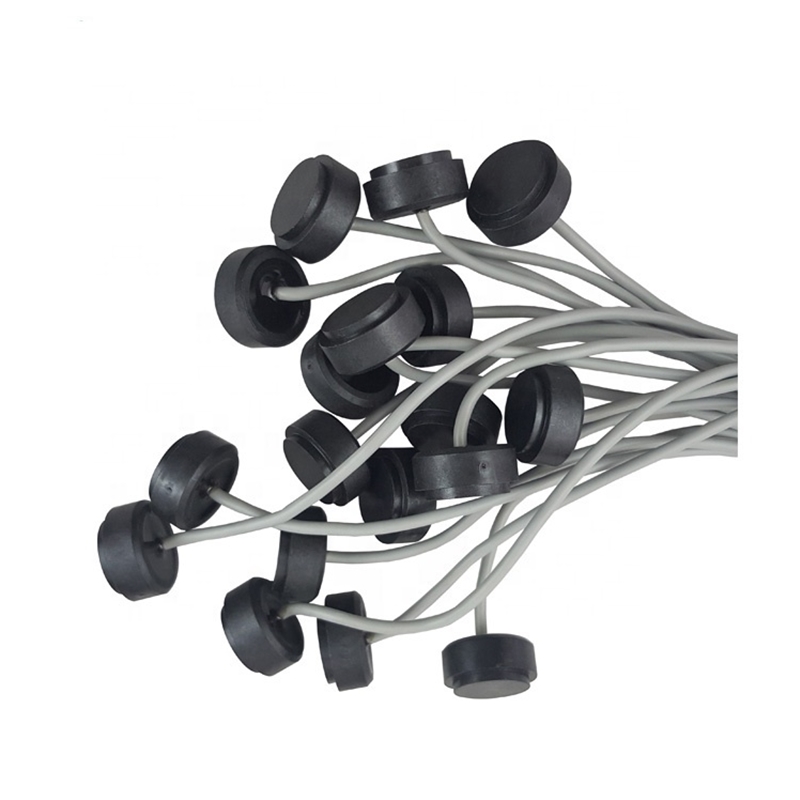

2Mhz ultrasonic transducer features:
1/ small size, easy installation
2/ High sensitivity, High precision, little aftershock wave, wide bandwidth
3/ Long life
Application
For level measure in air, such as ultrasonic level sensor, proximity sensor
|
Model |
LF2000K1 |
|
Center frequency(kHz) |
2.00MHZ±4% |
|
Band width(-6dB) |
10% |
|
Overall Sensitivity 0 dB=3 Vp-p;Pulses:5;Length:8cm |
-25dB min |
|
Distance |
1.0M |
|
Blind Zone |
3cm |
|
Beam angle(-3dB) |
3° |
|
Static capacity |
2300PF±20% |
|
Minimum resistance |
100Ω±30% |
|
Max work voltage |
<200V |
|
Work temperature |
4~50℃ |
|
Housing material |
PPS |
|
Protection class |
IP68 |
The above tests were conducted in 25 ° environment.。

Phase curve

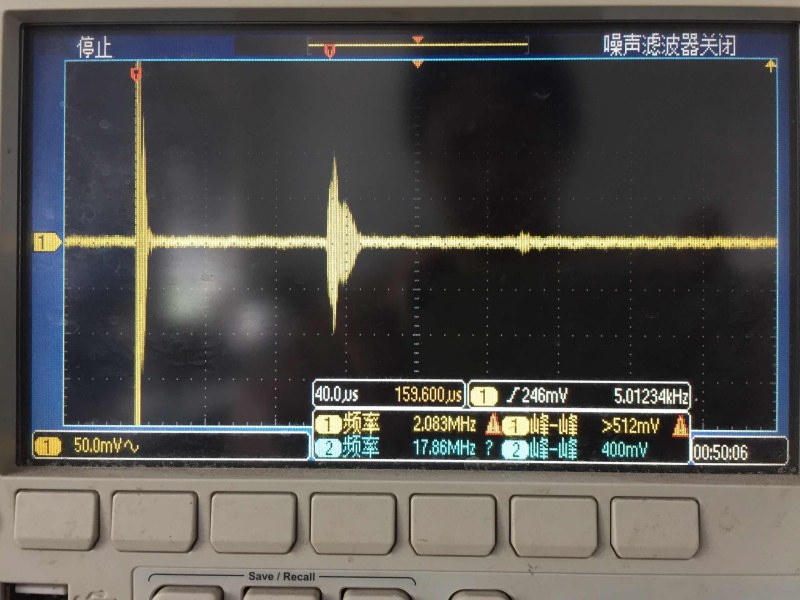

Overall Sensitivity 0 dB=3 Vp-p;Pulses:5;Length:8cm
