I. Overview

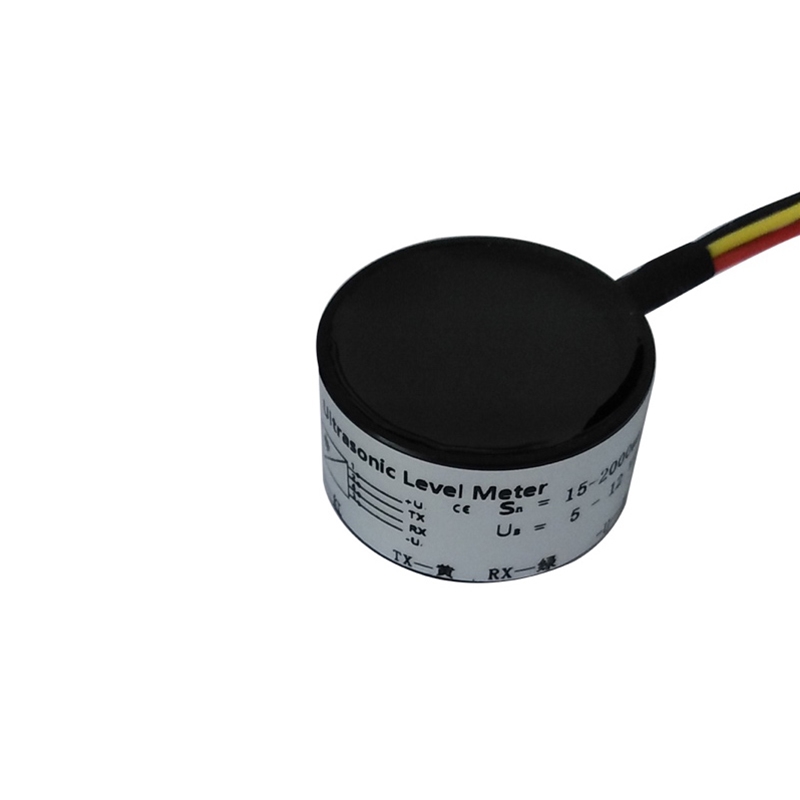

UFL2000 fuel level meter is a sensing device that uses ultrasonic detection technology to measure the non-contact liquid level of fuel and liquid substances. Compared with traditional testing equipment, UFL2000 fuel level meter has high measurement accuracy and is easy to use. It can be externally installed (without destroying the container structure), and can be connected to networked devices for network monitoring and management. The ultrasonic fuel quantity monitoring sensor is optimized for vehicle monitoring mode. It can adapt to vehicles running or stationary at various speeds on various roads, and can output more stable data for other liquids loaded on the vehicle. UFL2000 fuel level meter is referred to as sensor.

II. Product Features

Non-contact measurement, no need to change the shape of the container, no need to polish the surface paint layer of the container;

Metal casing, internal circuit potting treatment, rainproof design, suitable for outdoor environment; built-in powerful magnet, external waterproof adhesive, easy to install, fixed and firm;

Wide voltage operation, DC 12~48V power supply, suitable for all kinds of vehicles;

RS232 output interface, compatible with various sensor signal connections;

High-frequency ultrasonic testing, high solid penetration, suitable for containers of various materials such as metal and plastic

High stability measurement output, built-in anti-interference data processing model, intelligent filtering, compensation for environmental interference

High-precision measurement output, built-in high-precision calculation model, millimeter-scale measurement resolution

III. Application

Vehicle fuel quantity monitoring

Liquid level measurement

Container water level monitoring

IV: Parameters

V. Installation

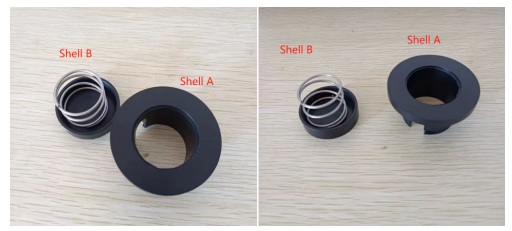

There is a set of install shell for this fuel level sensor, it include shell A and shell B, as picture:

1/ First, use fuel level sensor to locate a point on the bottom of the tank and mark it, make sure the signal is good.

2/ Stick the Shell A with strong glue at the marked point on the bottom of tank.

3/ Put the fuel level sensor into the Shell A, pay attention that there is no any bubbles and gap between the sensor and tank surface, the best way is to put some coupling agent on the sensor surface when put the sensor into Shell A.

4/ Screw up Shell B to Shell A, fix the sensor tightly.
