Frequency-resistance Frequency-phase
| Center Frequency(kHz) | 400KHZ±4% |
|---|---|
| Band width | 30kHz |
| Overall sensitivity 0 dB=18 Vp-p;Pulses:50;Length:10cm | >-74dB |
| Measurement distance | 0.05—0.3m |
| Blind Zone | <0.05m |
| Beam angle(-3dB) | 7±2° |
| Static capacity | 180PF±20% |
| Minimum resistance | 600Ω±30% |
| Max work voltage | <300V |
| Work temperature | -20~70℃ |
| Protection class | IP65 |
| Housing material | Aluminum alloy |
|
Model |

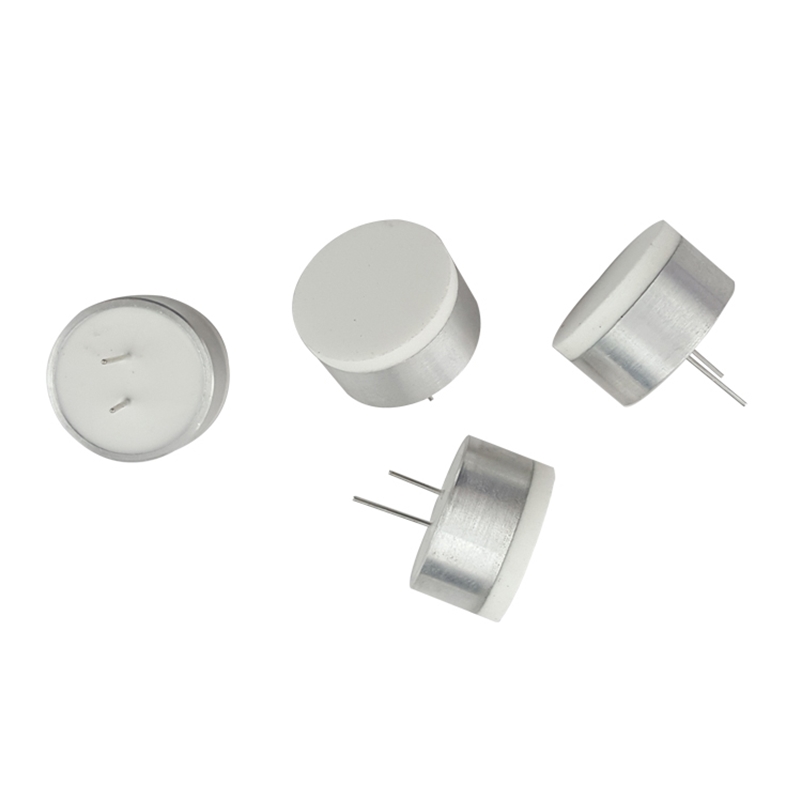

AD0400K1 |
|
Center Frequency(kHz) |
400KHZ±4% |
|
Band width |
30kHz |
|
Overall sensitivity 0 dB=18 Vp-p;Pulses:50;Length:10cm |
>-74dB |
|
Measurement distance |
0.05—0.3m |
|
Blind Zone |
<0.05m |
|
Beam angle(-3dB) |
7±2° |
|
Static capacity |
180PF±20% |
|
Minimum resistance |
600Ω±30% |
|
Max work voltage |
<300V |
|
Work temperature |
-20~70℃ |
|
Protection class |
IP65 |
|
Housing material |
Aluminum alloy |
The above tests were conducted in 25 ° environment。

Frequecy-resistance
Frequency-phase
