Frequency-phase Sensitivity
| Frequency f(kHz) | 200kHz±4% OSCILLOSCOPE |
|---|---|
| Band width △f | ±5% |
| Sensitivity (dB) (0dB=15Vp-p*120mm) | -62db min SIGNAL GENERATOR |
| Beam angle (°) | 12% |
| Static capacity (pf) | 2000PF±20% MULTIMETER |
| Resistance Z(Ω) | 250Ω±30% IMPEDANCE ANALYZER |
| Max work voltage | <100V |
| Work temperature (℃) | -20~70℃ |
| Pressure (MPa) | <0.3 |
| Protection class | IP65 |
| Anti corrosion | Gas, weak acid, weak base |
| Cable | AGR 39/0.07 |
| Signal interface | soldering |
| Weight (g) | 4.8 |
|
Name |

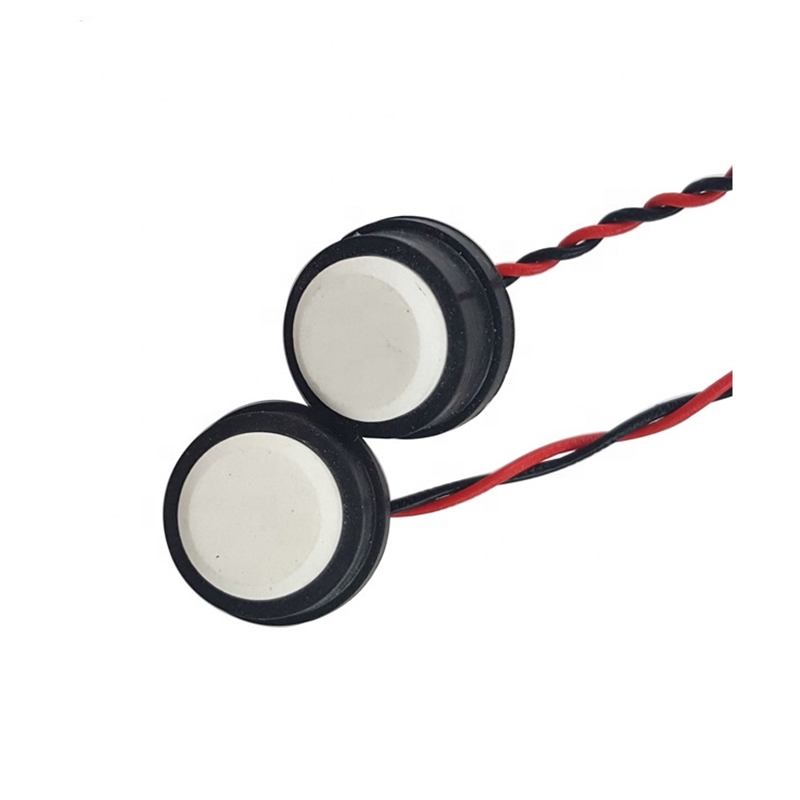

Air flow transducer |
Work temperature (℃) |
-20~70℃ |
|
Model |
AF0200K1 |
Pressure (MPa) |
<0.3 |
|
Frequency f(kHz) |
200kHz±4% OSCILLOSCOPE |
Protection class |
IP65 |
|
Band width △f |
±5% |
Anti corrosion |
Gas, weak acid, weak base |
|
Sensitivity (dB) (0dB=15Vp-p*120mm) |
-62db min SIGNAL GENERATOR |
Cable |
AGR 39/0.07 |
|
Beam angle (°) |
12% |
Signal interface |
soldering |
|
Static capacity (pf) |
2000PF±20% MULTIMETER |
Installation |
|
|
Resistance Z(Ω) |
250Ω±30% IMPEDANCE ANALYZER |
Weight (g) |
4.8 |
|
Max work voltage |
<100V |
|
|

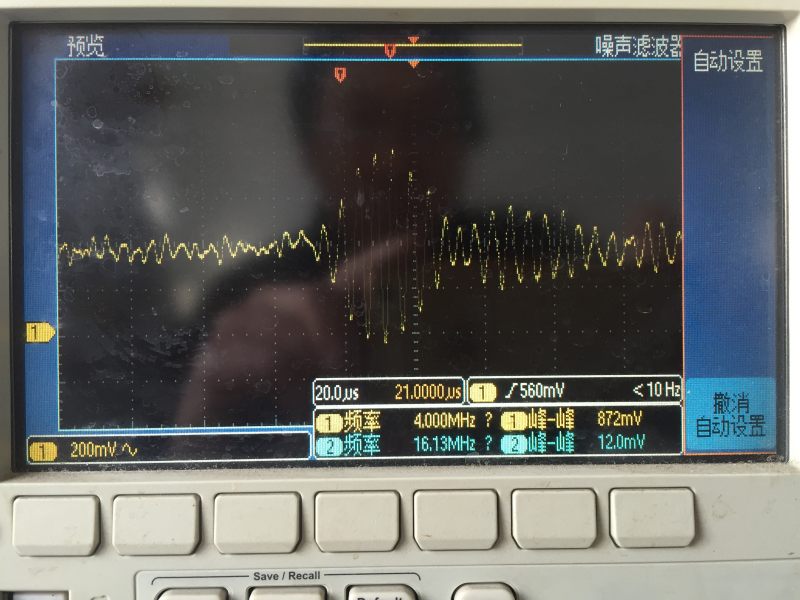

Sensitivity

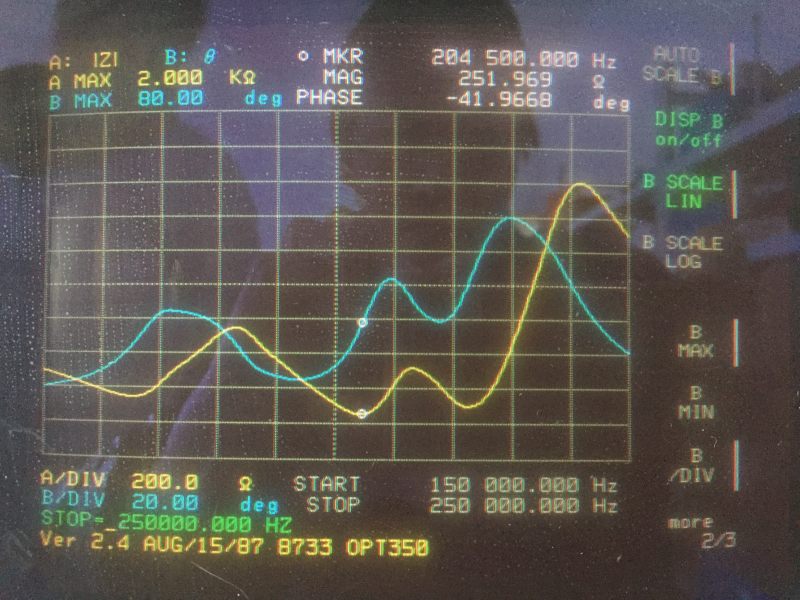

Frequency-phase
