Ultrasonic sensor
200K distance ultrasonic transducer市 场 价： ￥0元/个
优 惠 价： ￥0元/个
General Specifications：
- Center frequency（kHz）：200KHZ±4%
- Band width：16kHz
- Measurement distance：0.10—2M
- Blind zone：＜0.10M
- Work temperature：-20～70℃
- Protection class：IP65
- Housing materail：Alloy aluminum
- Price: 500+ PCS, USD7.5/PC

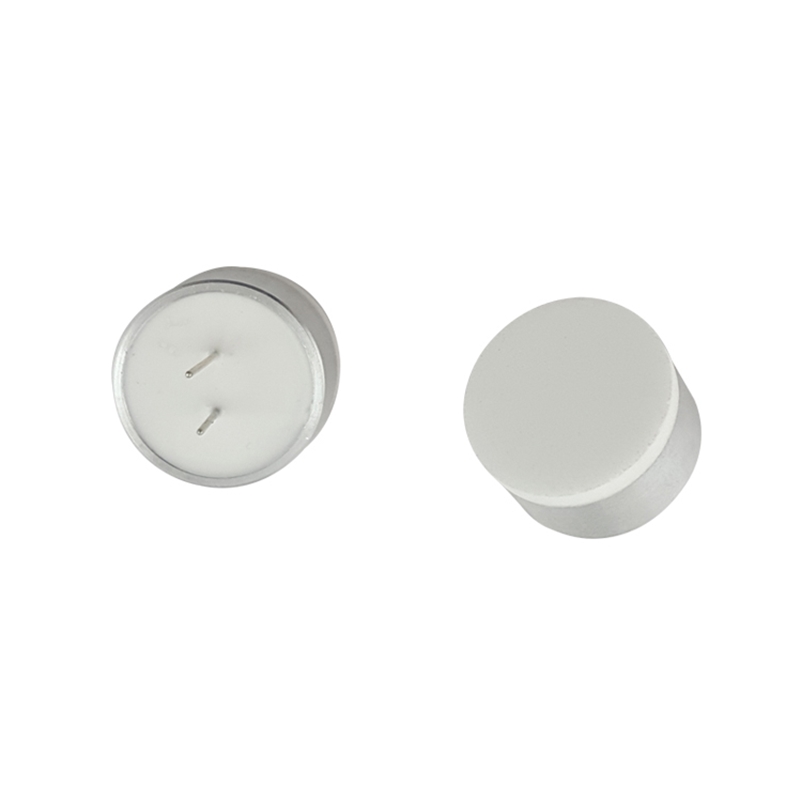

200K distance ultrasonic transducer
Parameters：
Model
AD0200K1
Center frequency（kHz）
200KHZ±4%
Band width
16kHz
Overall sensitivity
0 dB=200 Vp-p；Pules：50；Length：20cm
-60dB min
Measurement distance
0.10—2M
Blind zone
＜0.10M
Beam angle（-3dB）
7±2°
Static capacity
400PF±20%
Minimum resistance
600Ω±30%
Max work voltage
＜500V
Work temperature
-20～70℃
Protection class
IP65
Housing materail
Alloy aluminum

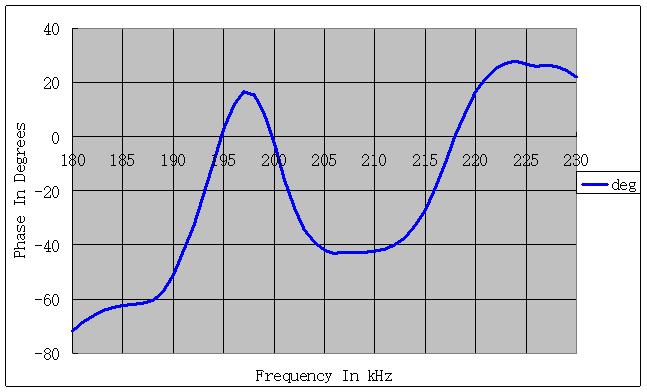

Frequency-phase
Overall sensitivity
0 dB=200 Vp-p；Pules：50；Length：20cm

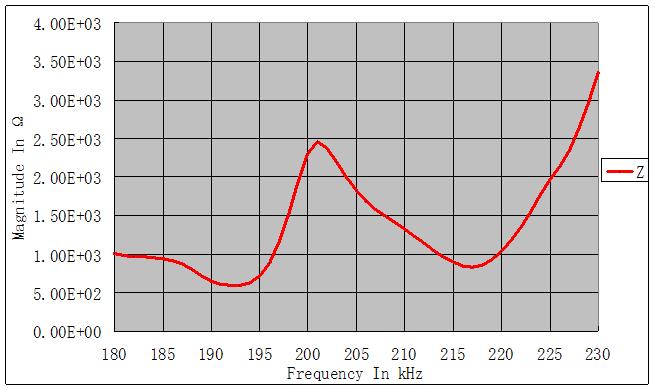

Frequency-resistance
