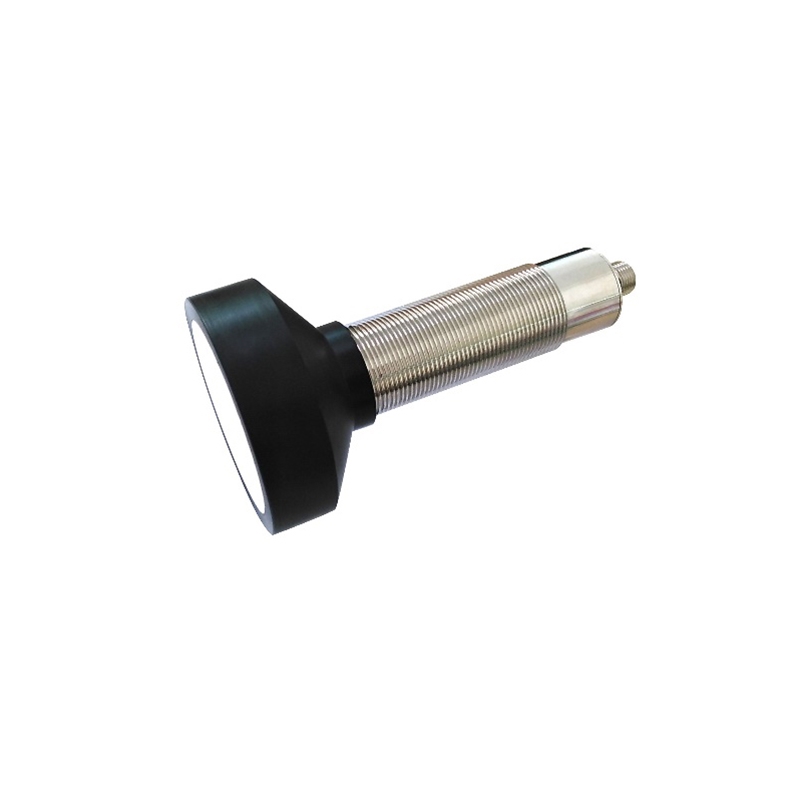

UM6000-30GM-E5-V15

市 场 价: ¥0元/个

优 惠 价: ¥0元/个

UM6000-30GM-E5-V15 Ultrasonic / vehicle sensor by MIC Metering. Specs and quotation on request.
UM6000-30GM-E5-V15

UM6000-30GM-E5-V15

UM6000-30GM-E5-V15

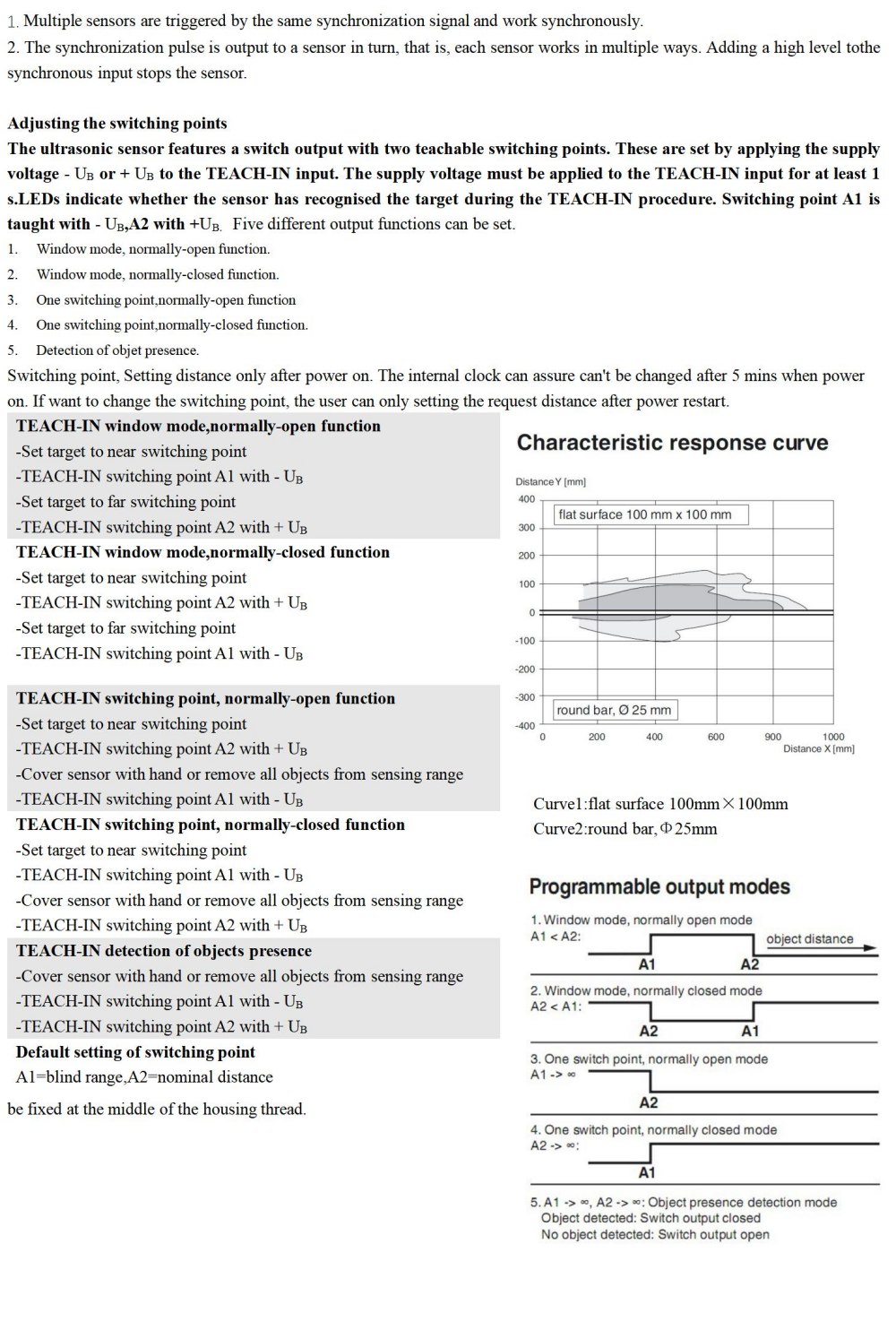

This sensor features a synchronization input for suppressing ultrasonic mutual interference ("cross talk"). If the input port is not switched on, the sensor operates at the internal frequency. A square wave voltage can also be added to the input port to synchronize the sensor. A

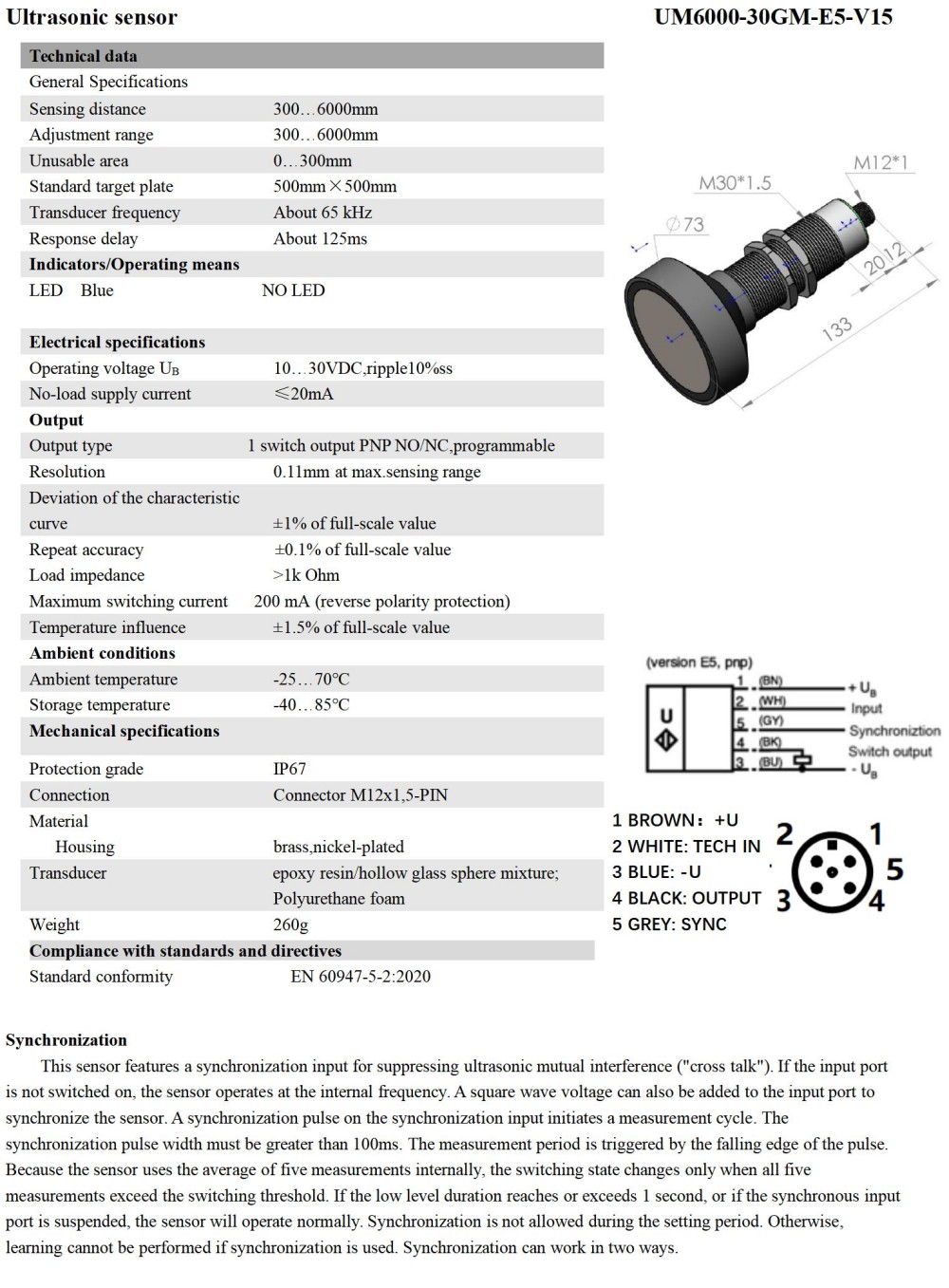

Specification

Ultrasonic sensorUM6000-30GM-IU-V15
Sensing distance350…6000mm
Adjustment range350…6000mm
Unusable area0…350mm
Standard target plate500mm×500mm
Transducer frequency About65 kHz
Response delay About125ms
Operating voltage UB10…30VDC ripple10%ss
No-load supply current≤30mA
Output type0 --- 10V & 4 -- 20mA/
Deviation of the characteristic curve±1% of full-scale value
Repeat accuracy±0.1% of full-scale value
Load impedance≤500 Ohm
Temperature influence±1.5% of full-scale value
Ambient temperature-25…70℃
Storage temperature-40…85℃
Protection gradeIP67
ConnectionConnector M12,5-PIN
HousingBrass nickel-plated
Transducerepoxy resin/hollow glass sphere mixture; Polyurethane foam
Weight380g
Compliance with standards and Directives1 BROWN:+U 2 WHITE: 0 -- 10V 3 BLUE: -U 4 BLACK: 4—20mA 5 GREY: SYNC
Standard conformityEN 60947-5-2:2020
