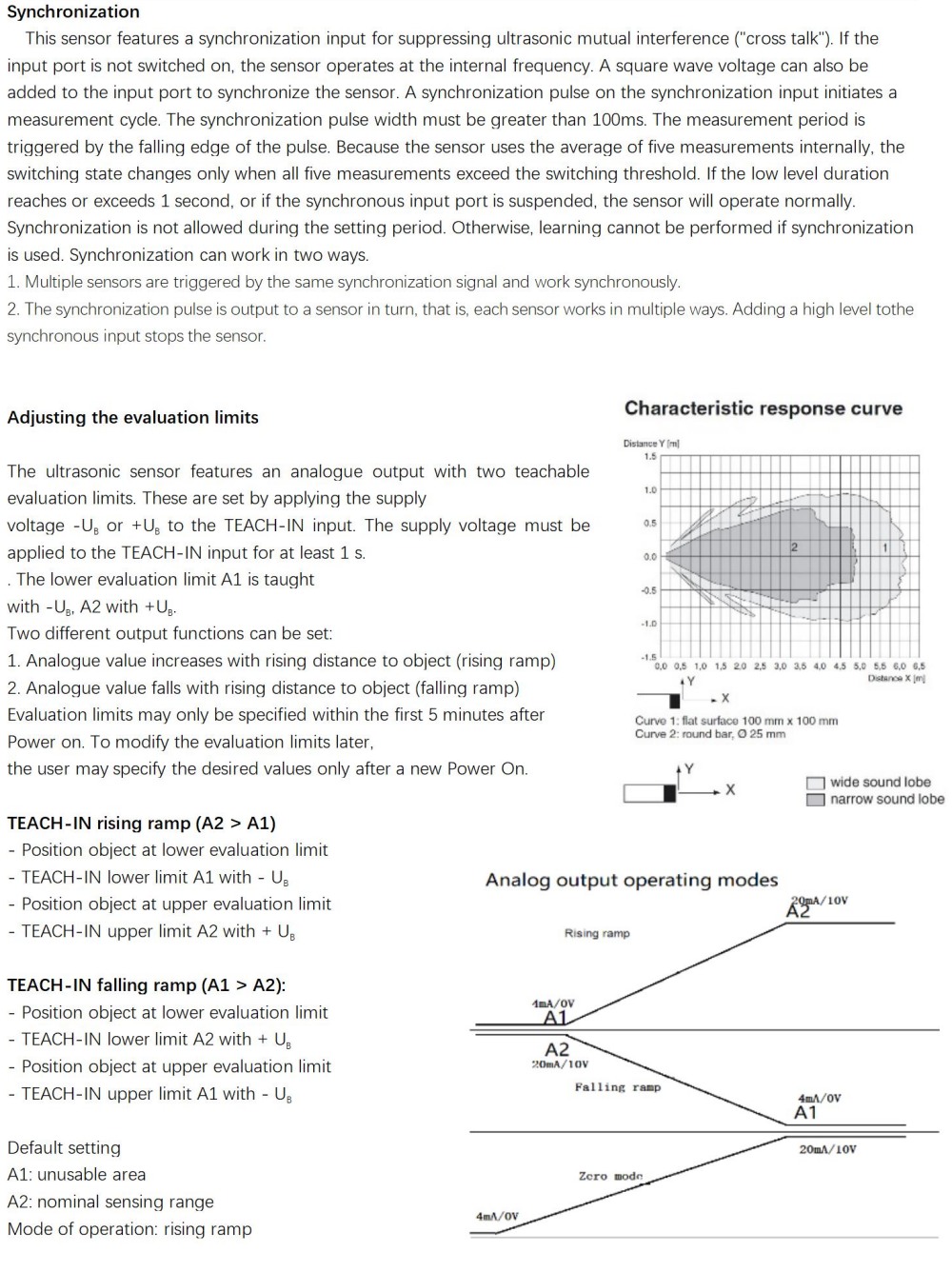

This sensor features a synchronization input for suppressing ultrasonic mutual interference ("cross talk"). If the input port is not switched on, the sensor operates at the internal frequency. A square wave voltage can also be added to the input port to synchronize the sensor. A

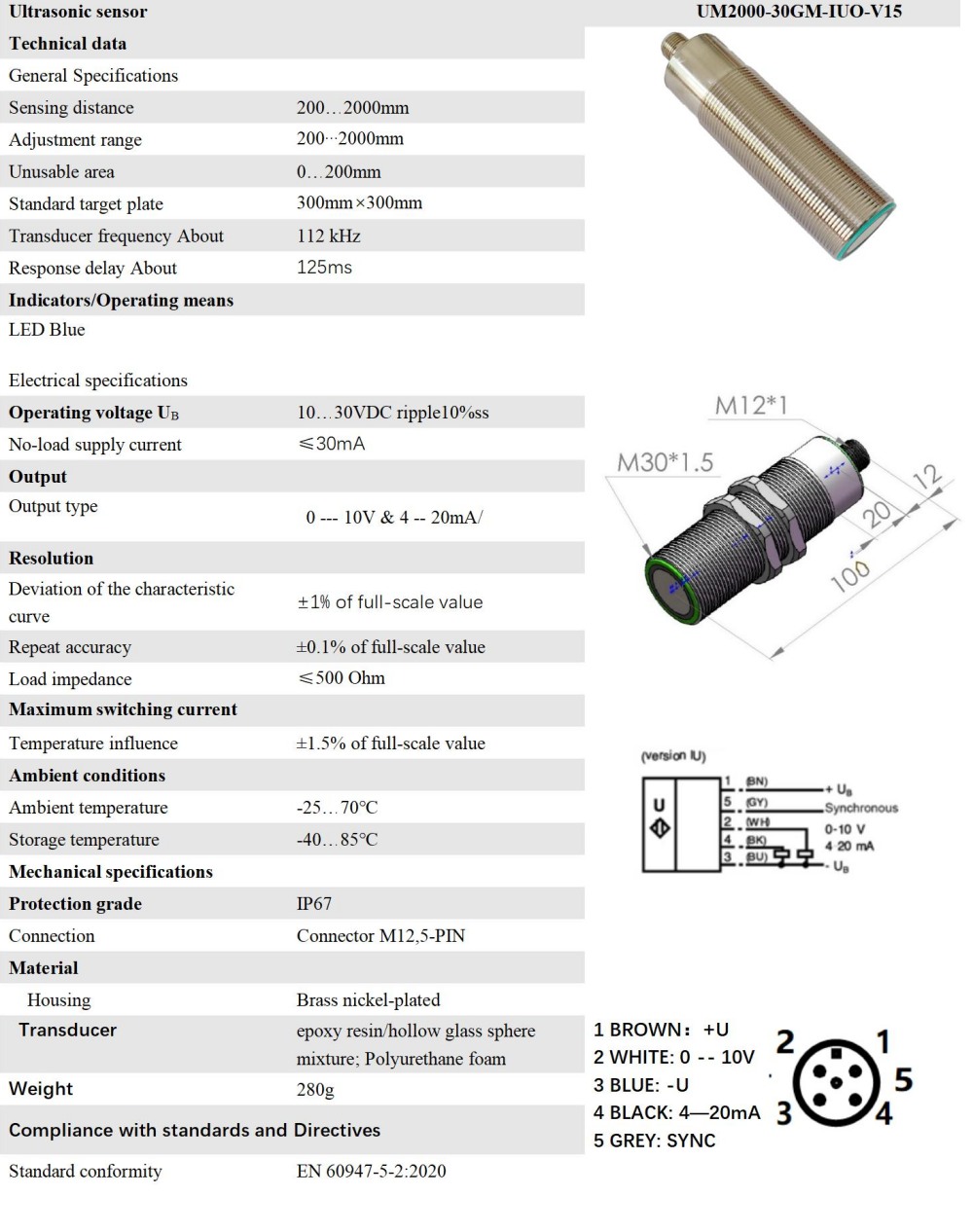

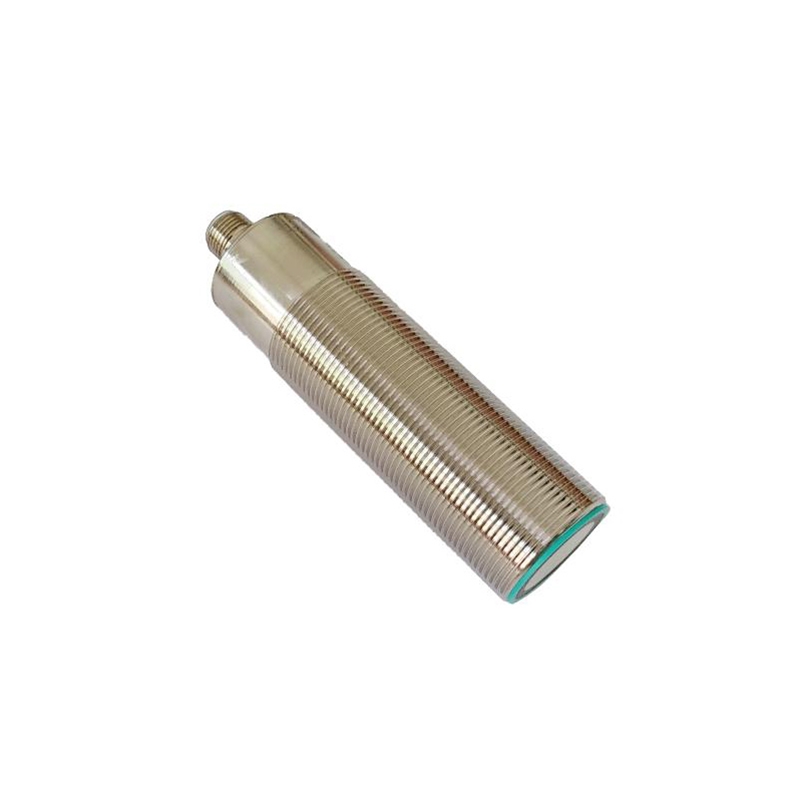

| Ultrasonic sensor | UM2000-30GM-IUO-V15 |
|---|---|
| Sensing distance | 200…2000mm |
| Adjustment range | 200…2000mm |
| Unusable area | 0…200mm |
| Standard target plate | 300mm×300mm |
| Transducer frequency About | 112 kHz |
| Response delay About | 125ms |
| Operating voltage UB | 10…30VDC ripple10%ss |
| No-load supply current | ≤30mA |
| Output type | 0 --- 10V & 4 -- 20mA/ |
| Deviation of the characteristic curve | ±1% of full-scale value |
| Repeat accuracy | ±0.1% of full-scale value |
| Load impedance | ≤500 Ohm |
| Temperature influence | ±1.5% of full-scale value |
| Ambient temperature | -25…70℃ |
| Storage temperature | -40…85℃ |
| Protection grade | IP67 |
| Connection | Connector M12,5-PIN |
| Housing | Brass nickel-plated |
| Transducer | epoxy resin/hollow glass sphere mixture; Polyurethane foam |
| Weight | 280g |
| Compliance with standards and Directives | 1 BROWN:+U 2 WHITE: 0 -- 10V 3 BLUE: -U 4 BLACK: 4—20mA 5 GREY: SYNC |
| Standard conformity | EN 60947-5-2:2020 |
