Home > Products > Ultrasonic sensor
Classify
  • UBS500-18GM-E5-V15
  • UBS500-18GM-E5-V15
UBS500-18GM-E5-V15

市 场 价: ¥0元/个

优 惠 价: ¥0元/个

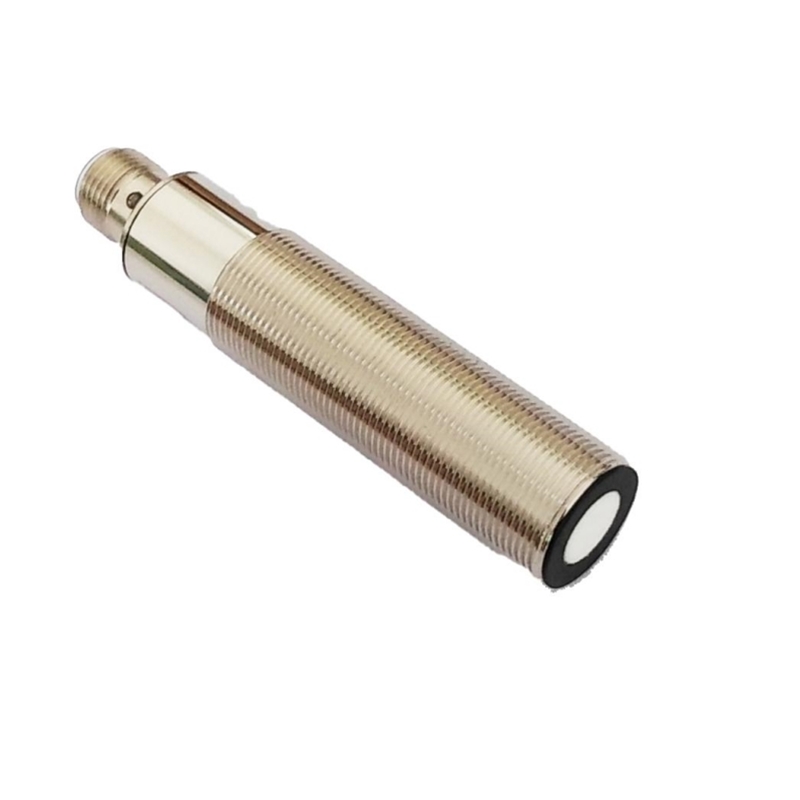

UBS500-18GM-E5-V15 Ultrasonic / vehicle sensor by MIC Metering. Specs and quotation on request.
UBS500-18GM-E5-V15

UBS500-18GM-E5-V15

UBS500-18GM-E5-V15

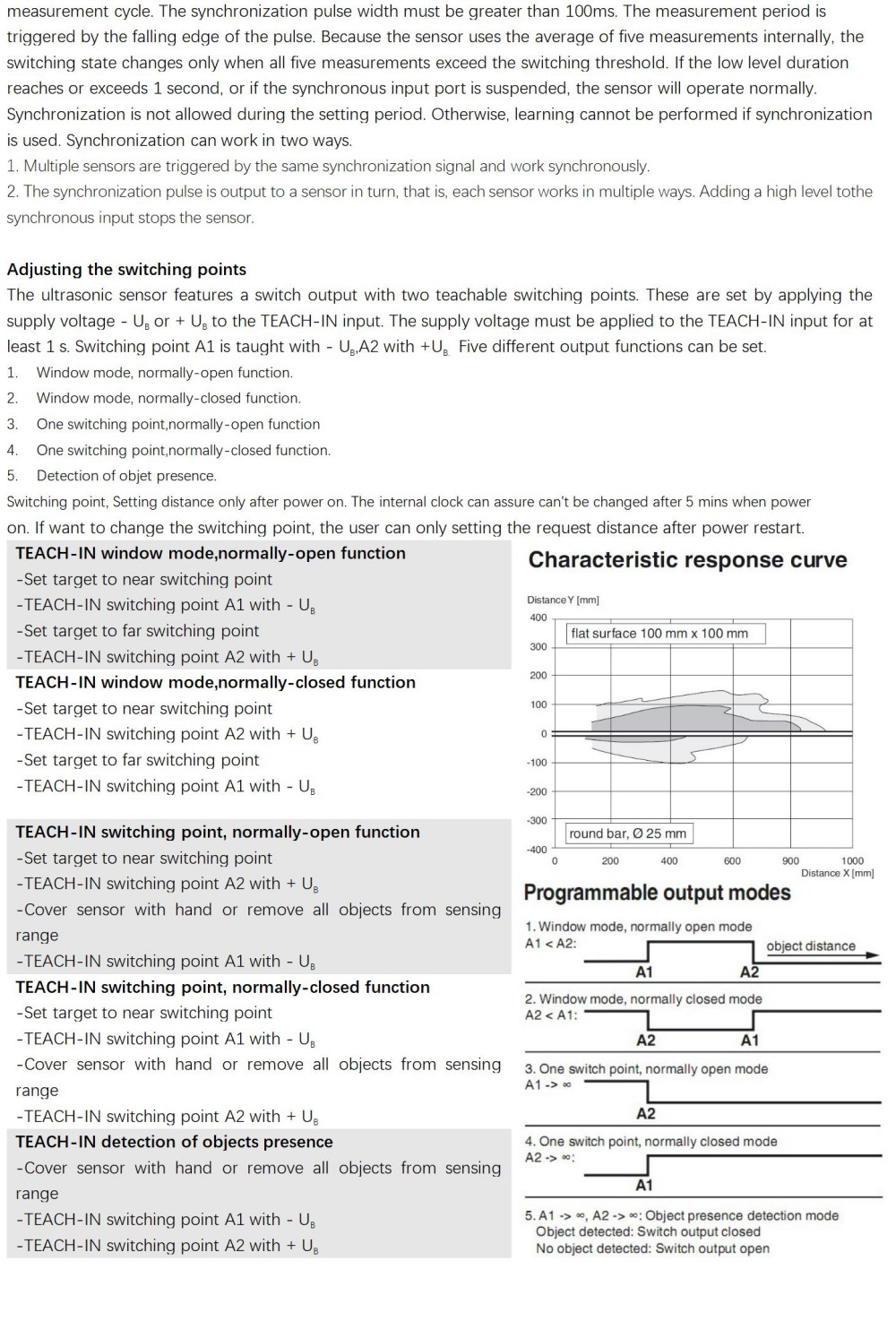

This sensor features a synchronization input for suppressing ultrasonic mutual interference ("cross talk"). If the input port is not switched on, the sensor operates at the internal frequency. A square wave voltage can also be added to the input port to synchronize the sensor. A

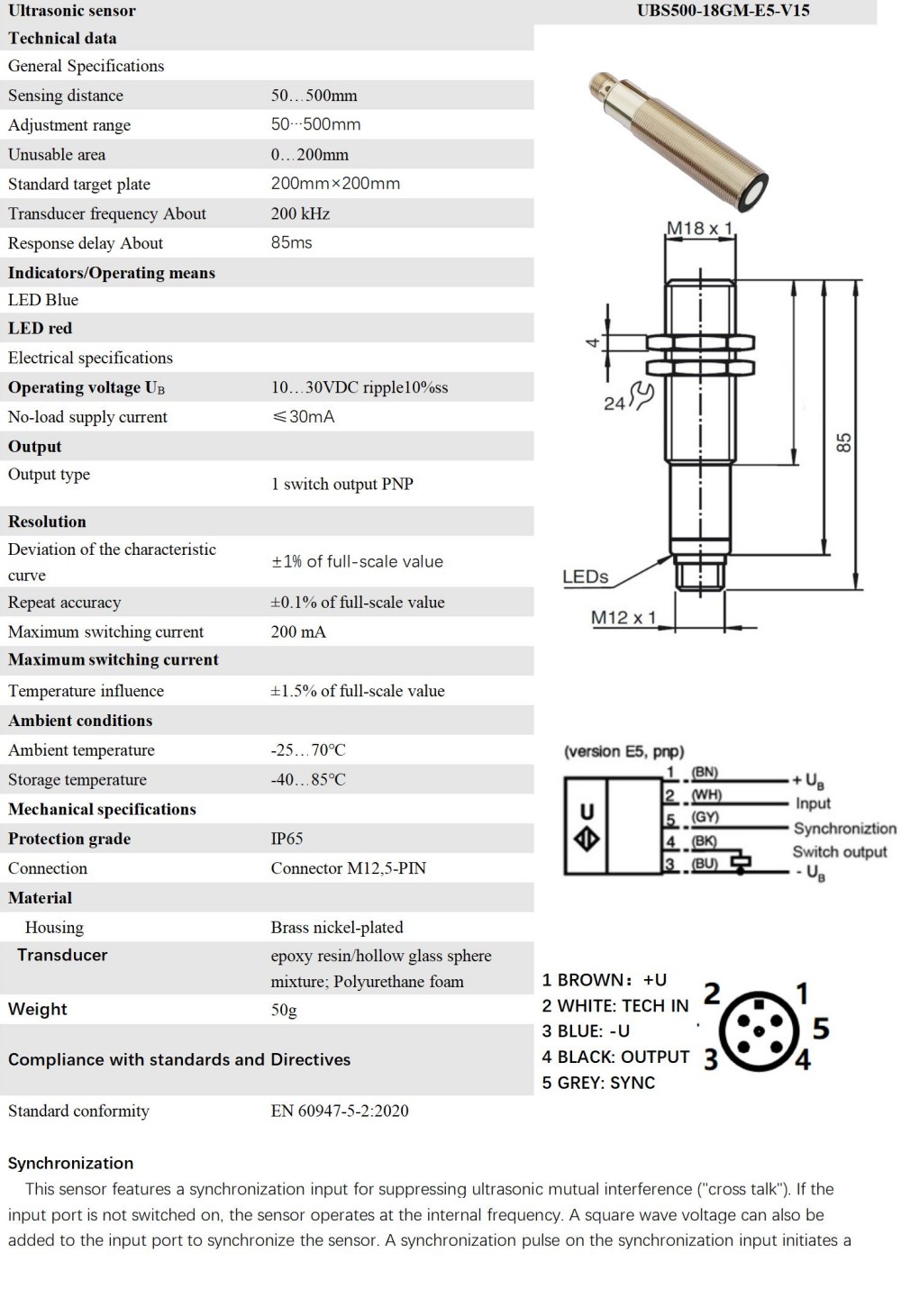

Specification

Sensing distance50…500mm
Adjustment range50…500mm
Unusable area0…200mm
Standard target plate200mm×200mm
Transducer frequency About200 kHz
Response delay About85ms
Operating voltage UB10…30VDC ripple10%ss
No-load supply current≤30mA
Output type1 switch output PNP
Deviation of the characteristic curve±1% of full-scale value
Repeat accuracy±0.1% of full-scale value
Maximum switching current200 mA
Temperature influence±1.5% of full-scale value
Ambient temperature-25…70℃
Storage temperature-40…85℃
Protection gradeIP65
ConnectionConnector M12,5-PIN
HousingBrass nickel-plated
Transducerepoxy resin/hollow glass sphere mixture; Polyurethane foam
Weight50g
Compliance with standards and Directives1 BROWN:+U 2 WHITE: TECH IN 3 BLUE: -U 4 BLACK: OUTPUT 5 GREY: SYNC
Standard conformityEN 60947-5-2:2020
