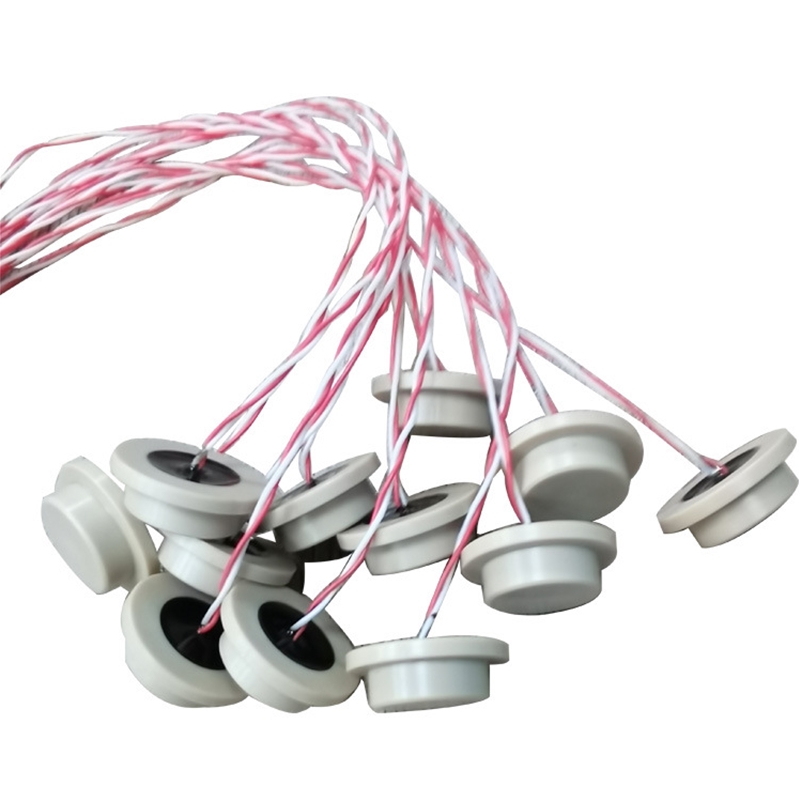

2MHz High Temperature Ultrasonic Transducer

市 场 价: ¥0元/个

优 惠 价: ¥0元/个

2MHz High Temperature Ultrasonic Transducer Ultrasonic / vehicle sensor by MIC Metering. Specs and quotation on request.
2MHz High Temperature Ultrasonic Transducer

2MHz High Temperature Ultrasonic Transducer

2MHz High Temperature Ultrasonic Transducer

Frequency-resistance Frequency-phase

Specification

Center frequency(kHz)2.00MHZ±4%
Band width(-6dB)10%
Overall Sensitivity 0 dB=3 Vp-p;Pulses:5;Length:8cm-25dB min
Distance1.0M
Blind Zone3cm
Beam angle(-3dB)3°
Static capacity2300PF±20%
Minimum resistance100Ω±30%
Max work voltage<200V
Work temperature4~50℃
Housing materialPPS
Protection classIP68

I: Parameters



Model

LF2000K1

Center frequency(kHz)

2.00MHZ±4%

Band width(-6dB)

10%

Overall Sensitivity

0 dB=10 Vp-p;Pulses:8;Length:21.5mm

1580v

Distance

1.0M

Blind Zone

3cm

Beam angle(-3dB)

3°

Static capacity

231PF±20%

Minimum resistance

100Ω±30%

Max work voltage

<200V

Work temperature

4~120℃

Housing material

Peek

Protection class

IP68

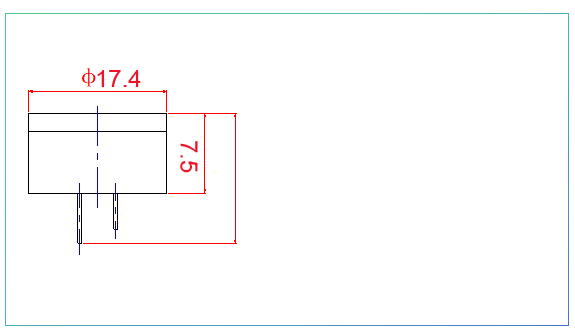

II: Technical Drawing



III: Features:



1/ small size, easy installation

2/ High sensitivity, High precision, little aftershock wave, wide bandwidth, can work at high temperature, anti-corrosion

3/ Long life



V: Application



For vehicle urea concentration measurement, or work at high temperature and corrosion surrounding
