Ultrasonic sensor
3Mhz ultrasonic liquid flow transducer市 场 价： ￥0元/个
优 惠 价： ￥0元/个
Features：
- for water flow
- for short distance of liquid
- small size, easy installation
- High sensitivity, High precision, little aftershock wave, wide bandwidth
- Long life
- Price: 1000+, USD2/PC

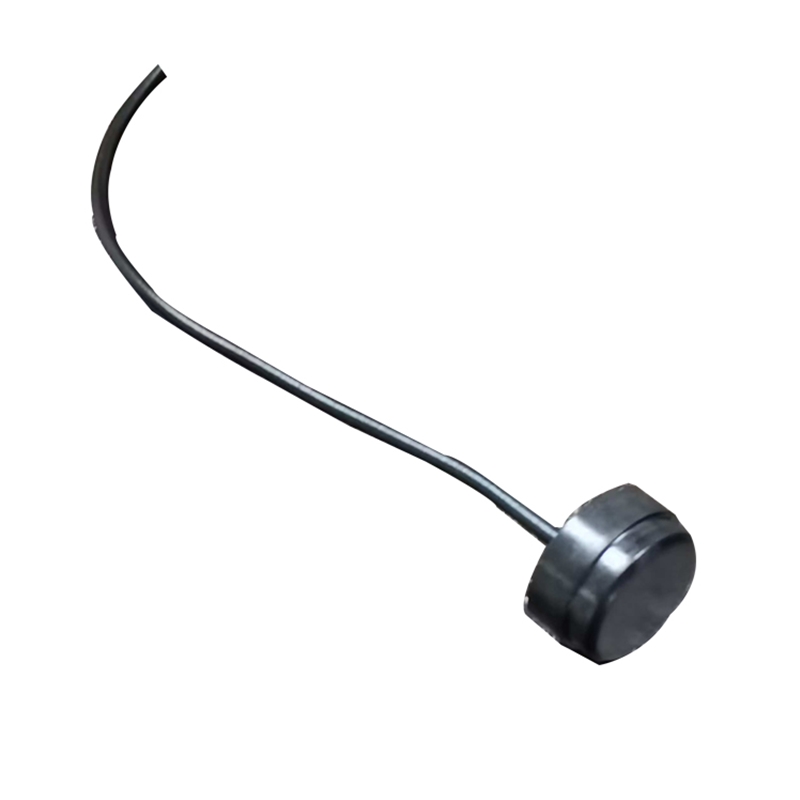

3Mhz ultrasonic liquid flow transducer
I: Parameters
Model
LF3000K
Center frequency（kHz）
3.00MHZ±4%
Band width（-6dB）
10%
Overall sensitivity
0 dB=20 Vp-p；Pules：5；Length：8cm
-60dB min
Measurement distance
500mm
Blind zone
30mm
Beam angle（-3dB）
3.5°
Static capacity
1000PF±20%
Minimum resistance
16Ω±30%
Max work voltage
＜150V
Work temperature
-20～120℃
Protection class
IP68
Housing material
PPS

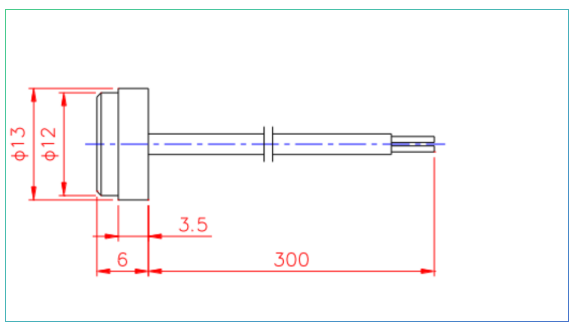

II: Technical Drawing

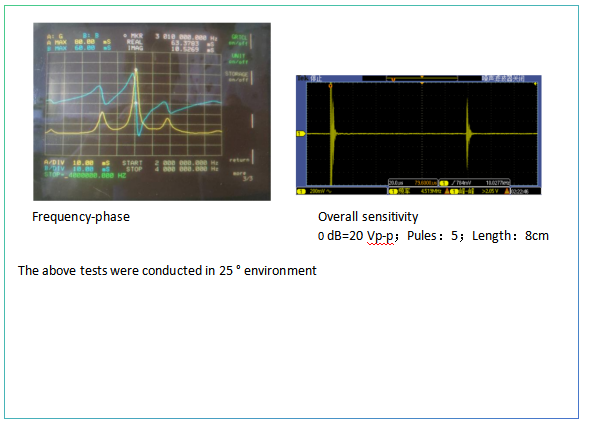

III. Product Key Index
IV: Features:
1/ small size, easy installation
2/ High sensitivity, High precision, little aftershock wave, wide bandwidth
3/ Long life
V: Application
For water flow, short distance of liquid such as water meters, heat meters
