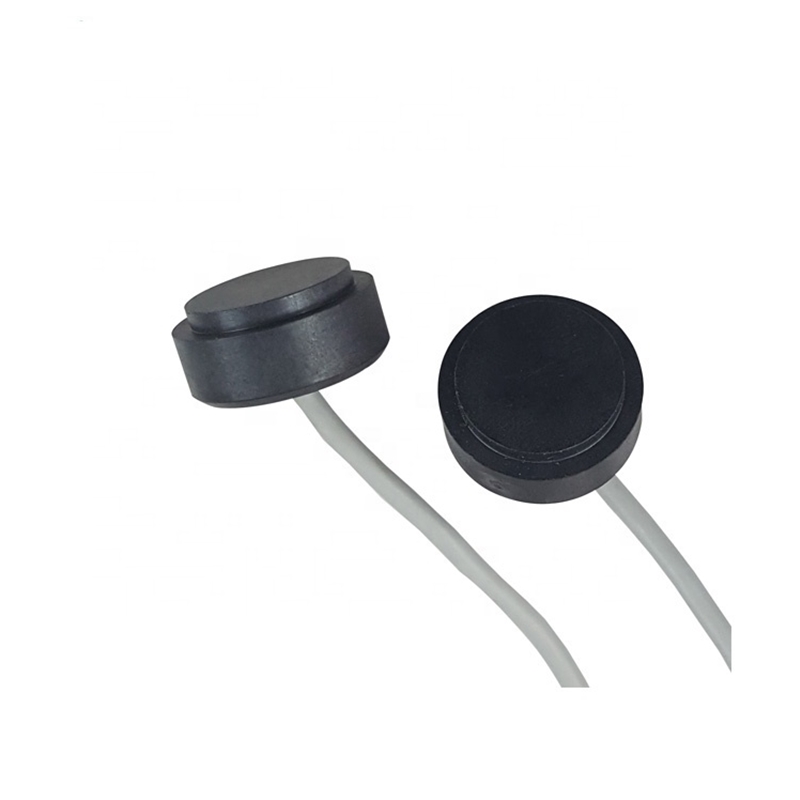

1MHz liquid flow ultrasonic transducer

市 场 价: ¥0元/个

优 惠 价: ¥0元/个

1MHz liquid flow ultrasonic transducer Ultrasonic / vehicle sensor by MIC Metering. Specs and quotation on request.
1MHz liquid flow ultrasonic transducer

1MHz liquid flow ultrasonic transducer

1MHz liquid flow ultrasonic transducer

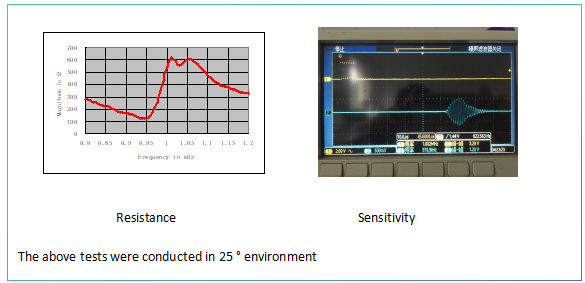

Resistance Sensitivity

Specification

Piezo frequency f(kHz)0.98MHz±2%
Transducer frequency (kHz)0.98MHz±3%
Frequency tolerance of pairs˂ 30KHz
Bandwidth△f(Underwater)±10%
Aftershock wave˂ 30μs
Sensitivity(V) (0dB=3Vp-p 8pulses L=85mm)>1.2V
Beam angle°(-3dB)6°
Static capacity(pf)1200PF±20%
Resistance Z(Ω)200Ω±30%
Work voltage3V
Work temperature(℃)4~+50℃
Storage temperature(℃)-30~+80℃
Protection classIP68
MaterialPPS
cableTwo core wires 40CM
Anti corrosionWeak acid, weak base
Weight (g)14g

I: Parameters



Name

Liquid transducer

Model

LF1000K1

Piezo frequency f(kHz)

0.98MHz±2%

Transducer frequency (kHz)

0.98MHz±3%

Frequency tolerance of pairs

˂ 30KHz

Bandwidth△f(Underwater)

±10%

Aftershock wave

˂ 30μs

Sensitivity(V)

(0dB=3Vp-p 8pulses

L=85mm)

>1.2V

Beam angle°(-3dB)

6°

Static capacity(pf)

1200PF±20%

Resistance Z(Ω)

200Ω±30%

Work voltage

3V

Work temperature(℃)

4~+50℃

Storage temperature(℃)

-30~+80℃

Protection class

IP68

Material

PPS

cable

Two core wires 40CM

Anti corrosion



Weak acid, weak base



Weight (g)

14g

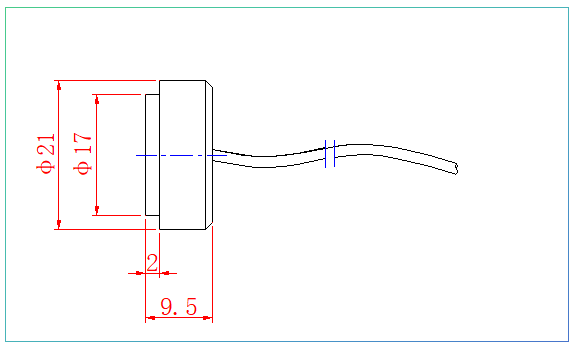

II: Technical Drawing



III. Product Key Index

IV: Features:



1/ small size, easy installation

2/ High sensitivity, High precision, little aftershock wave, wide bandwidth

3/ Long life



V: Application



For water flow, short distance of liquid such as water meters, heat meters
