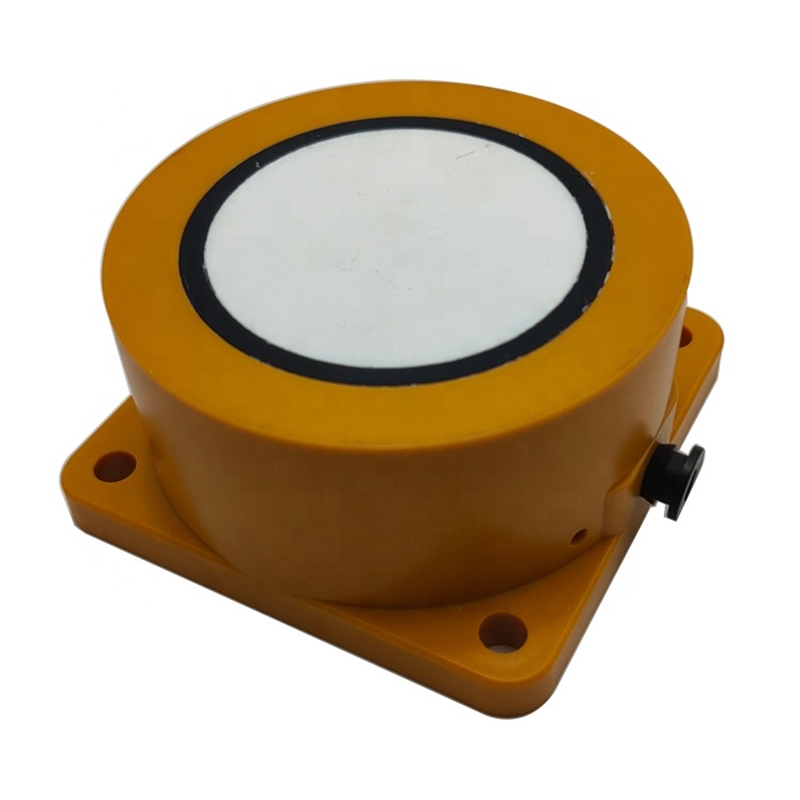

wireless ultrasonice level distance sensor-2

wireless ultrasonice level distance sensor-2

wireless ultrasonice level distance sensor-2

技术参数

测量范围正常距离 30---4000mm
分辨率3mm
重复精度FS±1%
灵敏度用户可调
发射角15°Cone
响应时间<200ms
温度补偿内部温度补偿
外壳材料PVC or PVDF
探头外壳PPA or PVDF
输出接口4线RS485,TTL或无线 LoraWan, NBiot, 蓝牙
工作温度-40°C ~ 70°C
储存温度-40°C ~ 85°C
湿度0~95%
输入电压3.6--5.5V DC
电流15mA(典型值)
UART TTL3.3V
测量频率10hz(默认)
电池容量9000mAh
使用寿命5年(2-3小时发送一次数据)
帧数据说明

I. Introduction

Wireless ultrasonic level gauge/level gauge is a low-power and high-performance product with integrated IP68 protection level of

ultrasonic sensor, wireless NBiot or LoraWan remote transmission, and large-capacity battery. It is widely used in municipal, water,

and smart cities. , automation, etc.



II. System

The wireless ultrasonic distance/level system consists of: application objects, long-life wireless ultrasonic range finder, cloud management

software, the key product is "low-power wireless ultrasonic sensor", cloud management software is a software customized product.



                                                     Low power consumption ultrasonic sensor

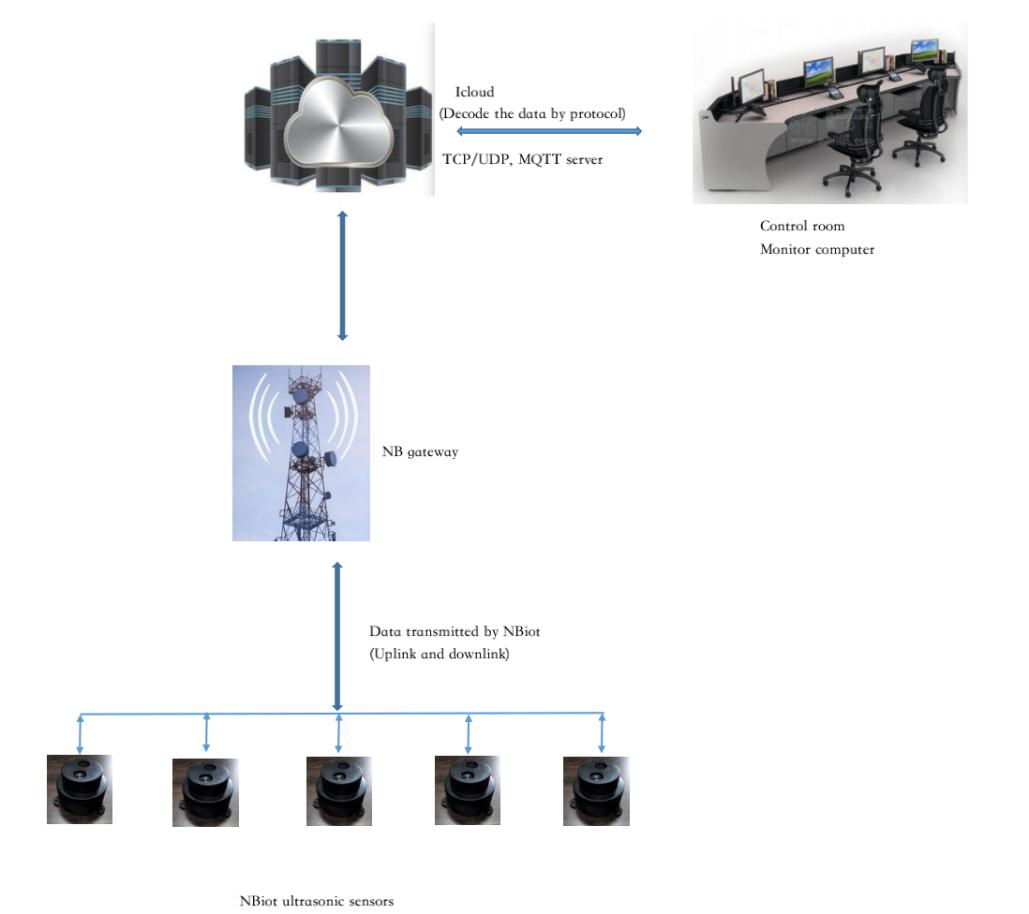

                                                                  System diagram



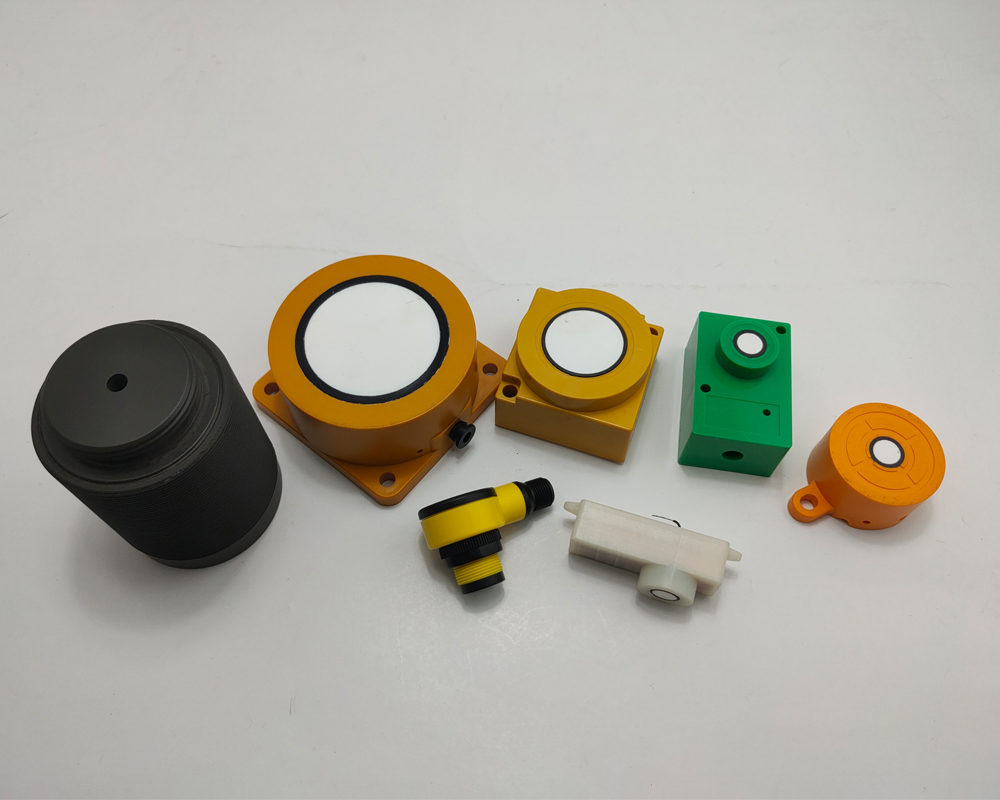

III. Product review:

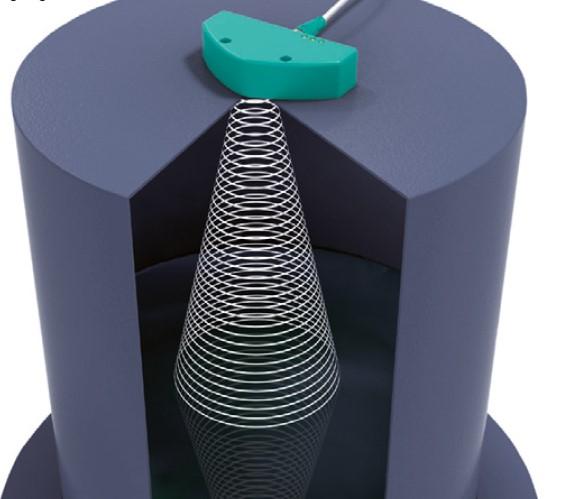

1. Ultrasonic ranging products provide reliable continuous level or distance measurement for water, liquid, glue or solid materials. These

   sensors are ideal for applications ranging from 10cm to 200cm.

2. The ultrasonic range finder can be easily connected to the control system electronically and mechanically, combined with the most

advanced ultrasonic technology and processing algorithms, the design is reasonable and the complete system is integrated.

3. Ultrasonic sensor conforming to IP68 standard, the product conforms to RoHS.

4. Ultrasonic distance/level meters can also provide accurate non-contact measurements for applications such as factory automation, process

control or tank level monitoring.

5. Ultrasonic rangefinders are powered by 3.6~5.5V DC battery or 9-30V DC, they use asynchronous UART TTL signal to communicate with

customer's control system. Their power-on time is very short (less than 300ms), which allows system integrators to develop very low-power

operation, where 3.6~5.5V DC is briefly applied to the sensor to obtain a distance measurement and then removed. This capability is especially

important in battery powered installations. The sensor is protected against overvoltage and reverse polarity in both DC power and UART

communication. Perform continuous temperature compensation for precise measurement accuracy.

6. Provides wireless communication with LoraWan or NBiot sensors (5 years battery life if data is transmitted every 2-3 hours).

7. Sensors stand out from others because of their user-friendly setup, versatile control options, field-proven reliability, and affordable cost.



                                                                     Measurements



IV. Characteristic

1. 3.6~5.5V or 9~36V power supply

2. Communication via Tx/Rx TTL or Bluetooth, LoraWan, NBiot, Wifi

3. Fast power-on response with level measurement, suitable for low-power systems

4. Plug and Play Setup

5. Temperature Compensation

6. Small blind spot

7. Tamper-proof and durable

8. IP68 enclosure protection class

9. Preservation of Accuracy in Harsh Environmental Conditions


V. Application

1. Measurement of water level, level/material level and distance

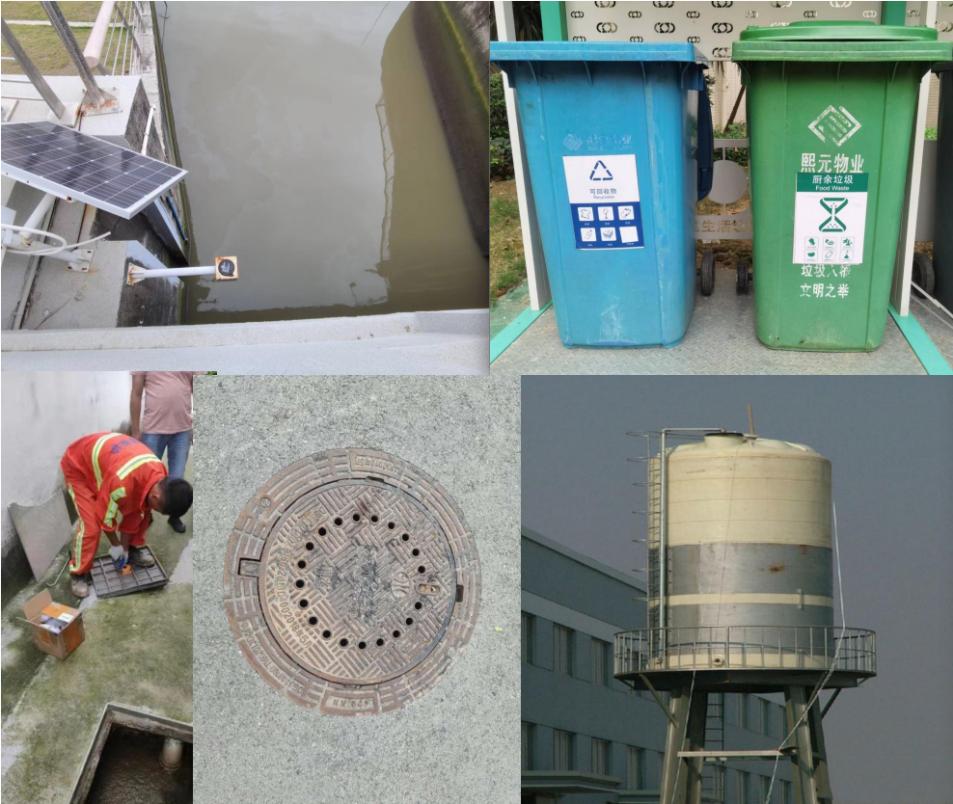

2. Smart city applications such as garbage bins, water wells, underground pipe networks, etc.

3. Bulk material management

4. Location detection





VI. Parameters



Measureing range

10---2000mm

Resolution

0.25mm

Accuracy

FS±1%

Sensitivity

Adjustable by user

Beam Angle

12°Cone

Power warm-up

<200ms

Temperature compensation

Internal temperature compensation

Mechanical Parameters

Housing material

PVC or PVDF

Transducer surface

PPA or PVDF

Connection interface

4 wires(4pin)or wireless LoraWan, NBiot, Bluetooth

Ambient

Working temperature

    -40°C ~ 70°C

Storage temperature

  -40°C ~ 85°C

Humidity

0~95%,no freeze

Electric Parameters





Battery

9000mAh (5years if data transmit interval is 2-3 hours)

Working voltage

3.6--5.5V DC

Currency

15mA(Typical value)

UART TTL

3.3V

Measurement frequency

10hz(Default)



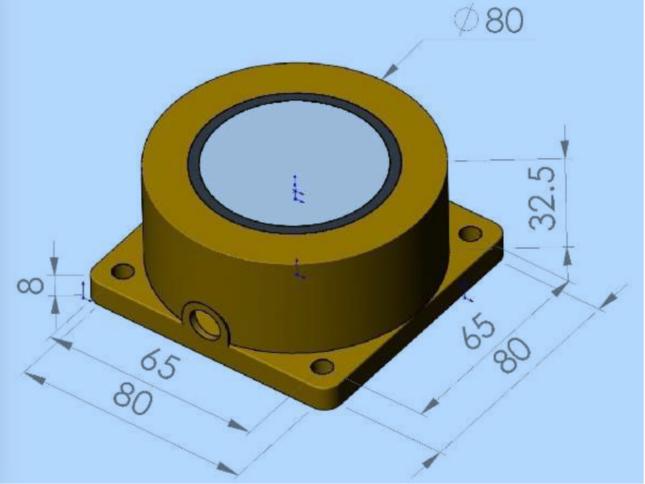

VII. Installation

Install it on the top cover (drill holes) or install it on the reverse side of the top cover with screws, try to install it in the middle of the tank
