Your location： Home > Products > Ultrasonic sensor

Classify

Ultrasonic sensor

500K gas flow ultrasonic transducer

市场价：￥0元/个

优惠价：￥0元/个

General Specifications：

Center Frequency（kHz）：500KHZ±4%
Static capacity：300PF±20%
Minimum resistance：200Ω±30%
Max work voltage：＜500V
Work temperature：-20～70℃
Protection class： IP65
Price: 1000+ PCS, USD3.8/PC

500K gas flow ultrasonic transducer

Parameters ：

Model	AF0500K1
Center Frequency（kHz）	500KHZ±4%
Overall sensitivity 0 dB=10 Vp-p；pulses；5 circles；Length：6cm Gain：40dB	>3V
Beam angel （-3dB）	5±1°
Static capacity	300PF±20%
Minimum resistance	200Ω±30%
Max work voltage	＜500V
Work temperature	-20～70℃
Protection class	IP65

The above tests were conducted in 25 ° environment。

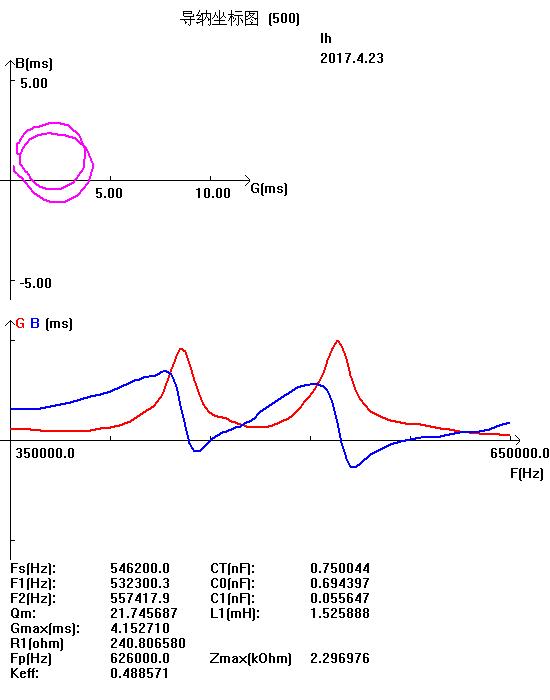

Frequency-resistance

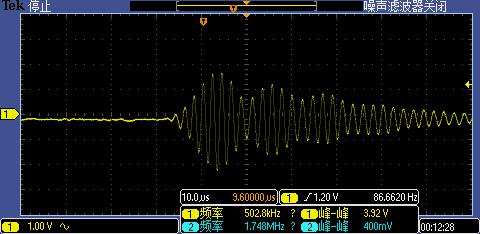

Overall sensitivity
0 dB=10 Vp-p；pulses；5 circles；Length：6cm

Previous：ultrasonic fuel level sensor UFL2000
Next：200K gas flow ultrasonic transducer
