Pressure sensor
exposive smart pressure transmitter PNT2市 场 价： ￥0元/个
优 惠 价： ￥0元/个
Features：
- 4-digit half LCD display, button settings, easy and convenient
- Multiple output options (voltage, current, digital, HART)
- Display range can be set freely, multiple units are available
- Fully digital signal processing, stable and reliable RS485/RS232 interface (up to 255 nodes)
- Online software can be used to correct zero point, full scale
- Suitable for large-scale data acquisition and automation control systems
- Supporting host computer data processing software optional
- Price: 50+ PCS, USD54.5/PC

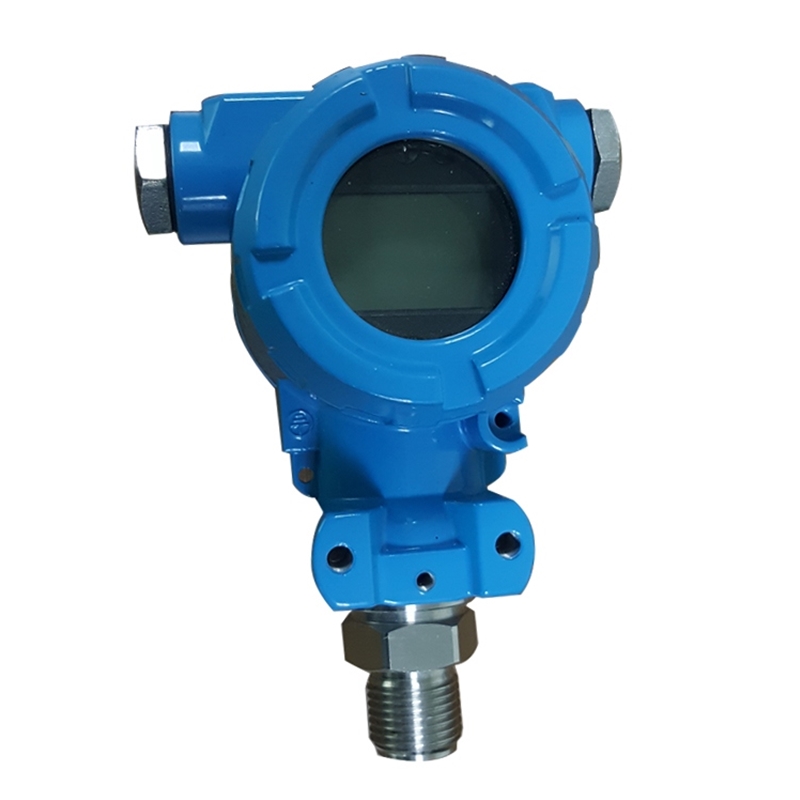

exposive smart pressure transmitter PNT2
Parameters：
Measurement Range
-0.1~250MPa
Pressure type
Gauge, absolute
Output signal
4~20mA/ 0~5V/Switch/Digital
Display
4 1/2 digital LCD or 4 digital LED
Accuracy (%FS)
±0.1%（Mini） ±0.25%（Typical）±0.5%（Max.）
Nonlinearity (%FS)
≤0.1 (Typical) ≤0.25 (Typical) ≤0.25 (Max.)
Hysteresis (%FS)
≤0.1 (Typical) ≤0.25 (Typical) ≤0.25 (Max.)
Repetition (%FS)
≤0.1 (Typical) ≤0.25 (Typical) ≤0.25 (Max.)
Stability
≤0.25
Temperature Error- Zero （%FS/℃）
≤0.02
Temperature Error –Span (%FS)
≤0.02
Ambient temperature
-20℃~60℃
Impedance
Adjustable
Power supply
12~36V (standard 24V)
Overload (%)
300
Life
9 Millions pressure cycles
Load impedance (Ω)
≤750
Response time (ms)
≤1
Measuring material
Compatible with 316L
Housing material
1Cr18Ni9Ti
Diaphragm material
316L or ceramic
Pressure port
M20×1.5 G1/2, G1/4, 1/4 NPT or customize
Protection
IP66
Weight
950g
Applications：
- Power system of petrochemical industry
- Hydraulic / pneumatic system
- Energy and water treatment system
- Automation equipment
- Industrial process control

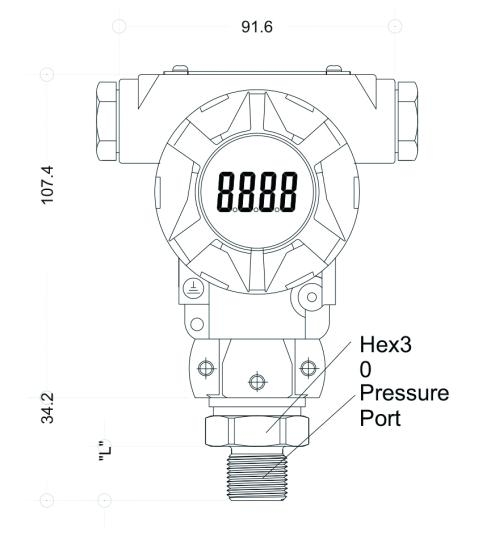

Outline dimension diagram：
