Pressure sensor
micro differential pressure sensor PNT-8 for air市 场 价： ￥0元/个
优 惠 价： ￥0元/个
Features：
- High sensitivity, can measure small pressure of 100Pa
- Continuous measurement of positive and negative pressure
- Good stability, less than 0.3% FS / year
- Small size for easy installation
- There are a variety of output signals to choose from
- Interfaces are available in a variety of formats
- Can measure differential pressure and micro pressure
- Price: 100+ PCS, USD38.5/PC
micro differential pressure sensor PNT-8 for air
Parameters：
Temperature 25℃
Measurement Range
-0.1~0.1MPa
Pressure type
Gauge, absolute
Output signal
4~20mA two wires
Accuracy (%FS)
±1%
Nonlinearity (%FS)
≤0.5
Hysteresis (%FS)
≤0.5
Repetition (%FS)
≤0.5
Stability
≤0.25
Temperature Error- Zero （%FS/℃）
≤0.02
Temperature Error –Span (%FS)
≤0.02
Ambient temperature
-20℃~85℃
Power supply
12~36VDC (standard 24V)
Overload (%)
300
Life
>9 Millions pressure cycles
Load impedance (Ω)
≤750
Response time (ms)
≤1
Housing material
1Cr18Ni9Ti
Measuring material
Compatible with 316L
Diaphragm material
316L or ceramic
Connector material
Tower junction + hose
Pressure port
M20×1.5 G1/2, G1/4, 1/4 NPT or customize
Protection
IP65
Weight
160g
Applications：
- Power system of petrochemical industry
- Wind pressure wind speed purification project
- Automation equipment
- Industrial process control

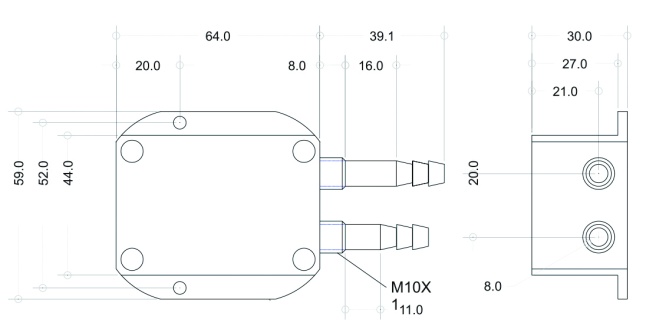

Outline dimension diagram：
