Measurement Range

-0.1~250MPa

Pressure type

Gauge, absolute

Output signal

4~20mA two wires or different output

Accuracy (%FS)

±0.1%   ±0.25%   ±0.25%

Nonlinearity (%FS)

≤0.1     ≤0.25     ≤0.25

Hysteresis (%FS)

≤0.1     ≤0.25     ≤0.25

Repetition (%FS)

≤0.1     ≤0.25     ≤0.25

Stability

≤0.25

Temperature Error- Zero （%FS/℃）

≤0.02

Temperature Error –Span (%FS)

≤0.02

Ambient temperature

-20℃~85℃

Power supply

12~36VDC (standard 24V)

Overload (%)

300

Life

9 Millions pressure cycles

Load impedance (Ω)

≤750

Response time (ms)

≤1

Housing material

1Cr18Ni9Ti

Measuring material

Compatible with 316L

Diaphragm material

316L or ceramic

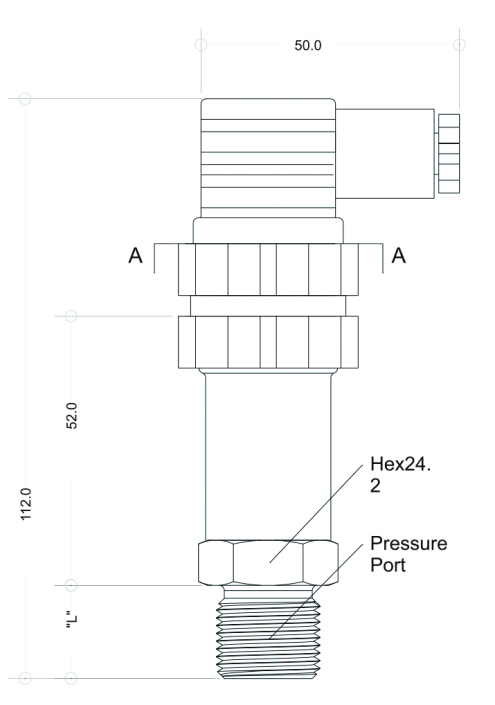

Pressure port

M20×1.5 G1/2, G1/4, 1/4 NPT or customize

Protection

IP65

Weight

80g
