Pressure sensor
flat diaphragm pressure sensor 4-20mA PNT9市 场 价： ￥0元/个
优 惠 价： ￥0元/个
Features：
- Flat diaphragm junction design is especially suitable for viscous liquids
- Quick installation
- Easy to clean
- Suitable for hygienic environment
- Price: 50+ PCS, USD51/PC

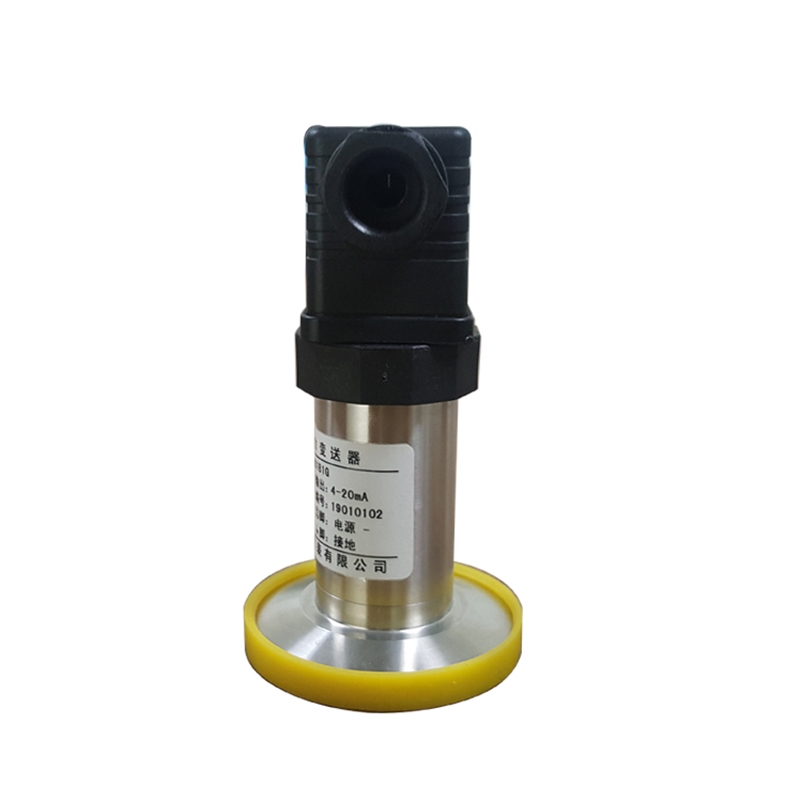

flat diaphragm pressure sensor 4-20mA PNT9
Parameters：
Temperature 25℃
Measurement Range
-0.1~60MPa
Pressure type
Gauge, absolute
Output signal
0~5V, 0~10V, 1~5V, 4~20mA, 0~20mA
Accuracy (%FS)
±0.1% ±0.25% ±0.5%
Nonlinearity (%FS)
≤0.2
Hysteresis (%FS)
≤0.2
Repetition (%FS)
≤0.2
Stability
≤0.25
Temperature Error- Zero （%FS/℃）
≤0.1
Temperature Error –Span (%FS)
≤0.02
Ambient temperature
-20℃~85℃
Power supply
12~36VDC (standard 24V)
Overload (%)
200
Life
>9 Millions pressure cycles
Load impedance (Ω)
≤750
Response time (ms)
≤1
Housing material
SUS304 or 316L
Measuring material
Compatible with 316L
Diaphragm material
316L or ceramic
Pressure port
Quick clamp
Protection
IP65
Weight
90g
Applications：
- Power system of petrochemical industry
- Hydraulic / pneumatic system
- Energy and water treatment system
- Automation equipment
- Industrial process control

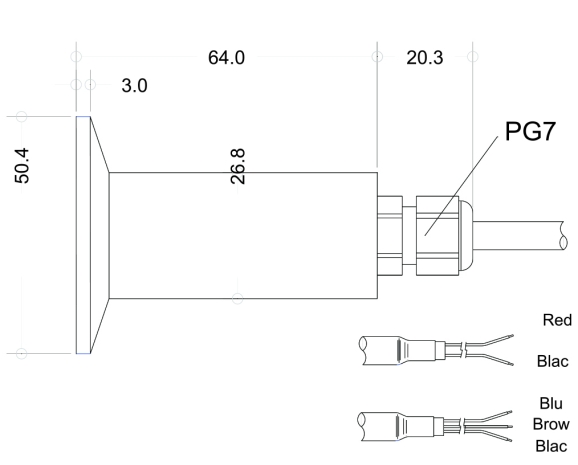

Outline dimension diagram：
