Pressure sensor
small cheap pressure sensor PNT12市 场 价： ￥0元/个
优 惠 价： ￥0元/个
Features：
- Specially tailored for high volume applications
- Small size and easy installation
- Original German imported core
- Low cost design
- Suitable for screw air compressors and air conditioning refrigeration systems
- Price: 50+ PCS, USD32/PC

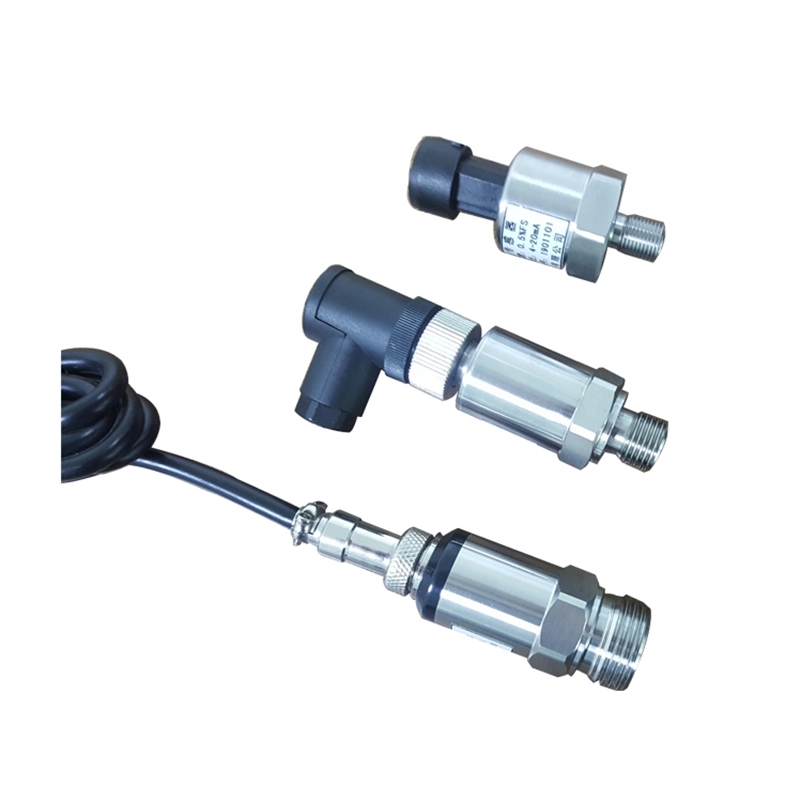

small cheap pressure sensor PNT12
Parameters：
Temperature 25℃
Measurement Range
0~5MPa
Pressure type
Gauge
Output signal
4~20mA/ 0~5V/ Switch/ Communication
Accuracy (%FS)
±0.5%
Stability
≤0.25
Error- Zero （%FS）
≤0.5
Total error (%FS)
≤1
Ambient temperature
-20℃~60℃
Compensation temperature
-20℃~85℃
Storage temperature
-40℃~125℃
Power supply
5VDC, 12~36VDC
Overload (%)
300
Damage (%)
500
Life
>9 Millions pressure cycles
Impact resistance
50g, 100ms
Shock resistance
20g, 10-200Mhz
Response time (ms)
≤1
Absolution impedance
>100M Ω @250VDC
Measuring material
Compatible with 304L
Diaphragm material
316L or ceramic
Connect port
Metri-Park 150, 3 pins or customize
Pressure port
G1/4 or customize
Protection
IP65
Weight
80g
Applications：
- Air compressor
- Hydraulic / pneumatic system
- hydraulics pressure
- Automation equipment
- Industrial process control

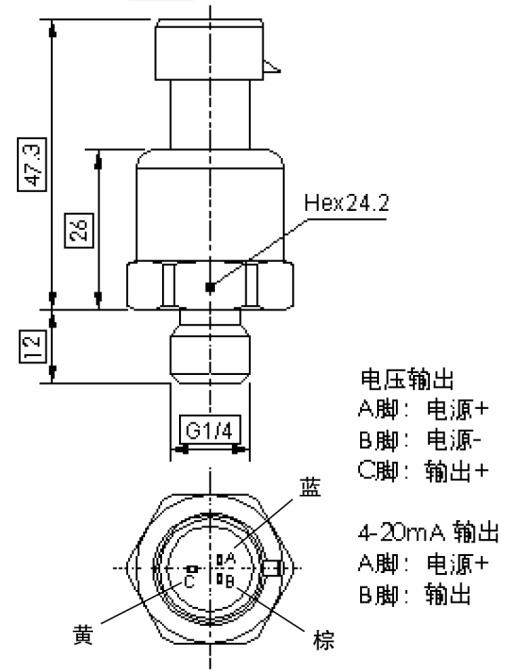

Outline dimension diagram：
