EV angle sensor AM40EV00001, 30 degree

市 场 价: ¥0元/个

优 惠 价: ¥0元/个

Angle sensor for EV and Fork lifter AM40EV00001-30 degree Ultrasonic / vehicle sensor by MIC Metering. Specs and quotation on request.
EV angle sensor AM40EV00001, 30 degree

EV angle sensor AM40EV00001, 30 degree

EV angle sensor AM40EV00001, 30 degree

Specification

1. Non-contact detection, stable performance and long service lifeWire connection
2. High sensitivityYellow
3. Wide temperature rangeBlack
4. Zero speed detectionWhite
5. Protection rating is IP65Blue
output signalOUT A 0.5V~4.5V

Product Introduction


The angle sensor is a new generation of 360 ° full range and programmable measurement range angle sensor

that uses high-performance integrated magnetic sensitive components and utilizes the non-contact characteristics

of magnetic signal induction, combined with a microprocessor (DSP) for intelligent signal processing. It has

outstanding advantages such as high resolution, good temperature characterization, and excellent cost-effectiveness,

and is widely used in fields such as forklifts, textile machinery, metallurgy, ships, chemicals, and petroleum.

Main parameters
Electrical parameters                                        Output signal:                                           Maximum speed: 10000rpm
Garbage angle: 360 °                                        OUT A 0.5V-4.5V (clockwise)                    Working temperature:- 40-85°C
Split rate (chip): 12 (bits)                                   OUT B 4.5V-0.5V (clockwise)                    Storage temperature:- 40-90°C
Accuracy (chip): 10 bits                                     Load capacity:> 4KΩ
Working voltage: DC:5V


Characteristic
1. Contactless, high repeatability, long service life
2. High precision, high processing rate
3. Protection level IP67, capable of working in harsh environments
4. 360 ° absolute position detection, customizable angle measurement range according to requirements
5. Redundant output

Electric parameter
Mechanical angle 360°
resolution (chip) 12
Accuracy (chip) 10
Working voltage DC: 5V

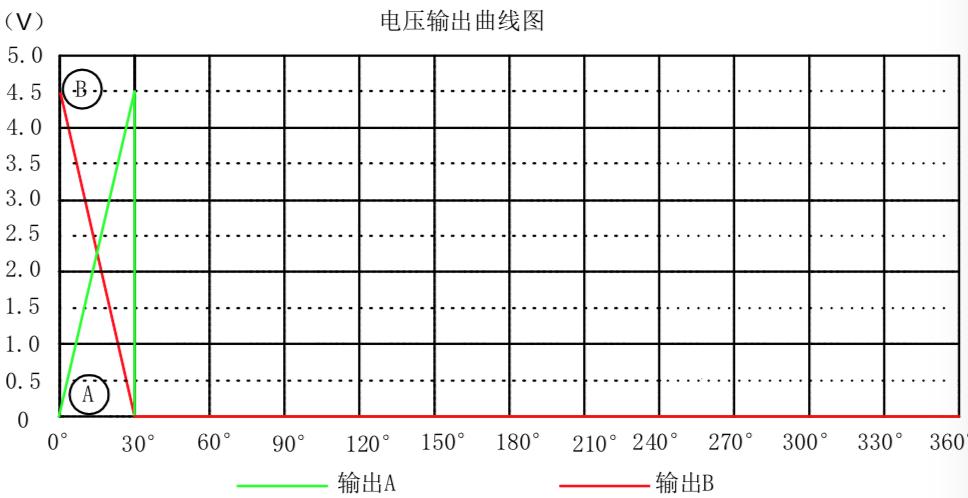

output signal OUT A 0.5V~4.5V
OUT B 4.5V~0.5V (anti-CW)
overload >4KΩ
Mechanical behavior
Max speed 10000rpm
Service life depends on the speed and using time
Ambient behavior
Working temperature -40°~85°
Storage temperature -40°~90°
Protection class IP65
Shell material Plastic
Rotor material stainless steel
Other
Out wire way redial direction

Wire connection
Yellow VCC
Black GND
White OUT A
Blue OUT B
