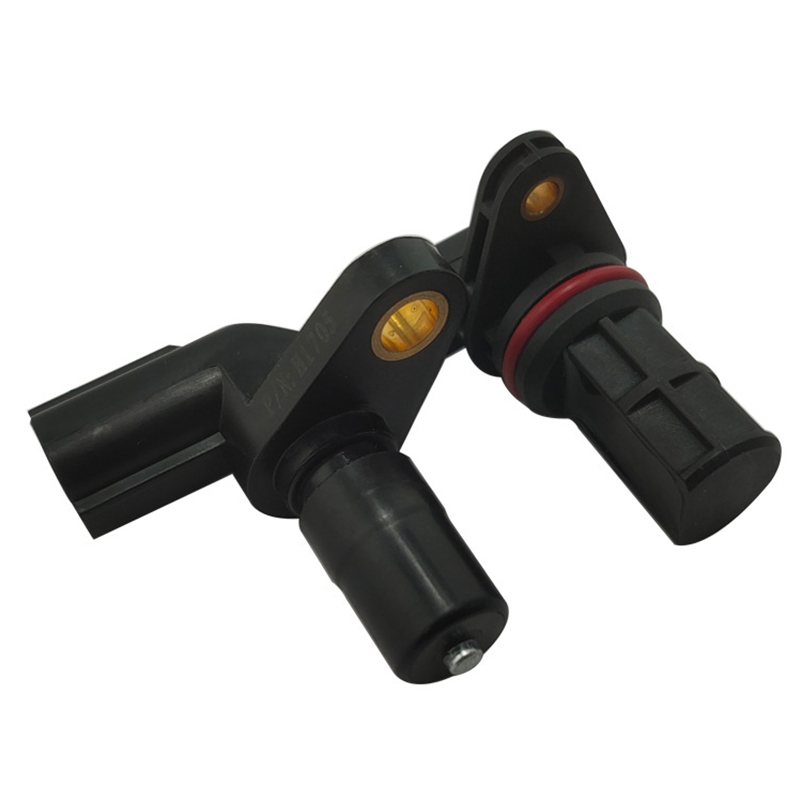

Product Introduction

Vehicle speed sensors are designed for automotive engines, transmissions, and transfer cases. The sensors

use magnetic sensitive components and the principle of sensing changes in gear position to detect the

position (teeth, grooves), rotational speed, and position of gears made of magnetic materials. This product

has high resolution, high frequency response, non-contact measurement, output standard square wave and

current signals, high protection level, and high temperature resistance, and is widely used in the automotive field.

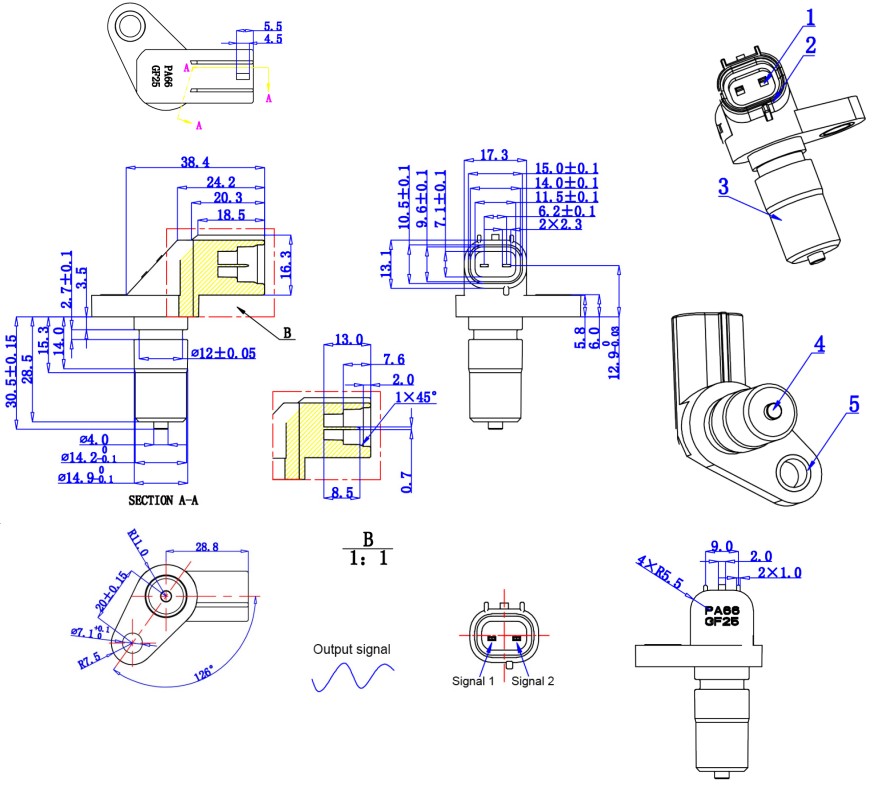

Parameter:

1.

   1. No obvious scratches on the appearance, smooth plastic surface, uniform color, no obvious depression.
   2. No loose parts after assembly
   3. Parts must not be cracked, strained or other defects that affect appearance and use.
   4. Batch products keep the same parameters and quality as the samples
   5. Non-marked tolerance refer as GB/T 14486-93-MT5-A



2. Marks

   AV: Active pulse single channel output                             HV: Square wave pulse

   IV: Active pulse dual output                                               LV: Passive sine wave

   FV: Analog voltage output                                                  CV: Speed measurement for automobiles
