Vehicle sensor
Stable synchronization motor coder HEML15Q0002市 场 价： ￥0元/个
优 惠 价： ￥0元/个
Parameter：
- Input voltage： 4.5~18V
- Max input voltage： 18V
- Duty ratio ：50%±20%
- Phase difference： 90°±20°
- Output Hi-TTL ：≥VS-0.5V
- Output Lo-TTL： ≤0.5V
- Price: 1000+ PCS, USD8.9/PC

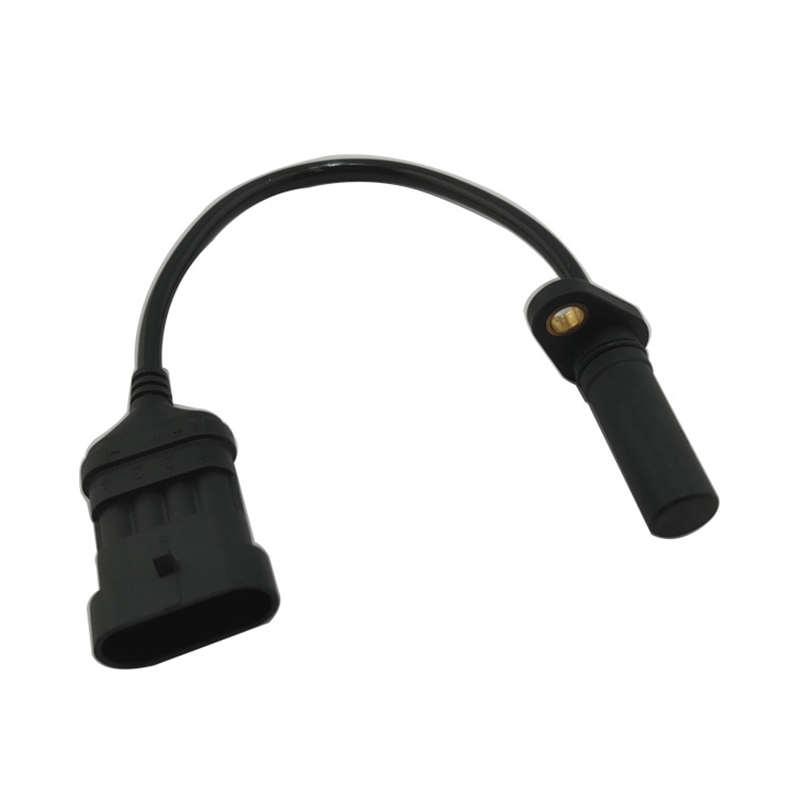

Stable synchronization motor coder HEML15Q0002
Product Introduction
The AC asynchronous motor encoder includes dual speed sensors, AC motor encoder, and encoder assembly. It mainly
uses Hall or giant magnetoresistance element integrated circuits (bias magnetic field) to detect and measure the micro
field changes caused by rotating gears or magnets, thereby achieving speed measurement and direction determination
functions. The casing of this type of sensor is made of special materials, which have the advantages of high strength and
excellent temperature resistance. The accompanying accessories also increase the sensing distance of the product to a
certain extent, making the overall reliability, stability, and wider range of use of the product more reliable. Its advantages
are highlighted in the following aspects:
Strong sensing ability, ranging from 10Hz-20KHz
The product complies with ROHS standards
Protection level reaches IP67
Can customize different external dimensions and performance parameters

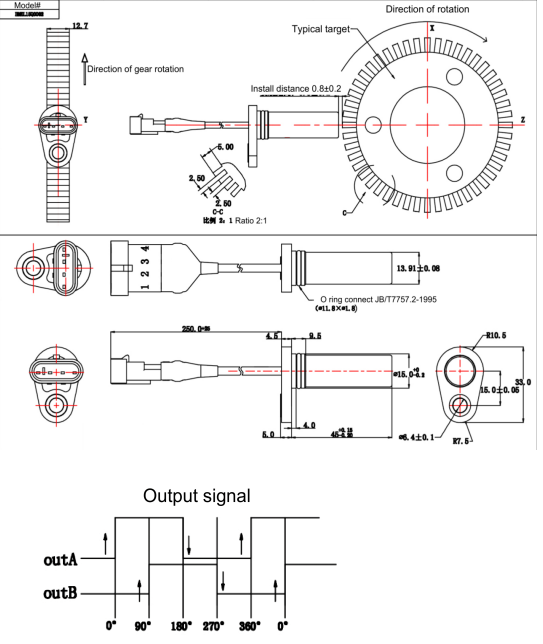

Mechanical parameter：
Item Parameter Remark Air gap 0.0~1.8mm(install distance 0.8±0.2) different gears, different sensing distance Target gear width 2.5mm (recommendation) other gears maybe same target gear space width 2.5mm (recommendation) other gears maybe same gear height >3mm (recommendation) the smaller of gear height, the smaller max sensing distance gear thickness >10mm (recommendation) the smaller gear thickness, the smaller axis shift sensor shift ±1.5mm based on the gear size Electric parameter：
Item Parameter Remark Input voltage 4.5~18V Max input voltage 18V Output signal Signal mode squre wave 2 phase, phase difference 90° Duty ratio 50%±20% Phase difference 90°±20° can be modified if need Output Hi-TTL ≥VS-0.5V Output Lo-TTL ≤0.5V Overload voltage Max 20mA Up time 10μs (typical) based on overload impedance Down time 2μs (typical) Frequency 20Hz~20KHz based on the gear size and sensing distance if more than 10KHz Short-circuit protection Yes Voltage (normal) 5V=(15MA) 12V=(26MA) Backward voltage -18V Ambient test：
Item Parameter Remark EML Radiation immunity EN 61000-6-2-2005 Conduction disturbance voltage of the power wall EN 61000-6-3-2007 ESD Fast transient burst EN 61000-6-4-4-2012 Temperature -40°~120°C Thermal shock -40°~120°C from humidity to temperature, stay 1/2 hour, time transfer <10S High temperature test 1000 hours @120°C Mechanical shock IEC60068-2-27-2008 IEC60068-2-29-1995 Shock IEC60068-2-6-2008
Precautions
Material Sensor body = PA66 + GF30%
Bushing = machined brass
Recommended mounting hole 15.05 +0.10/-0.00Links：Service Hotline
