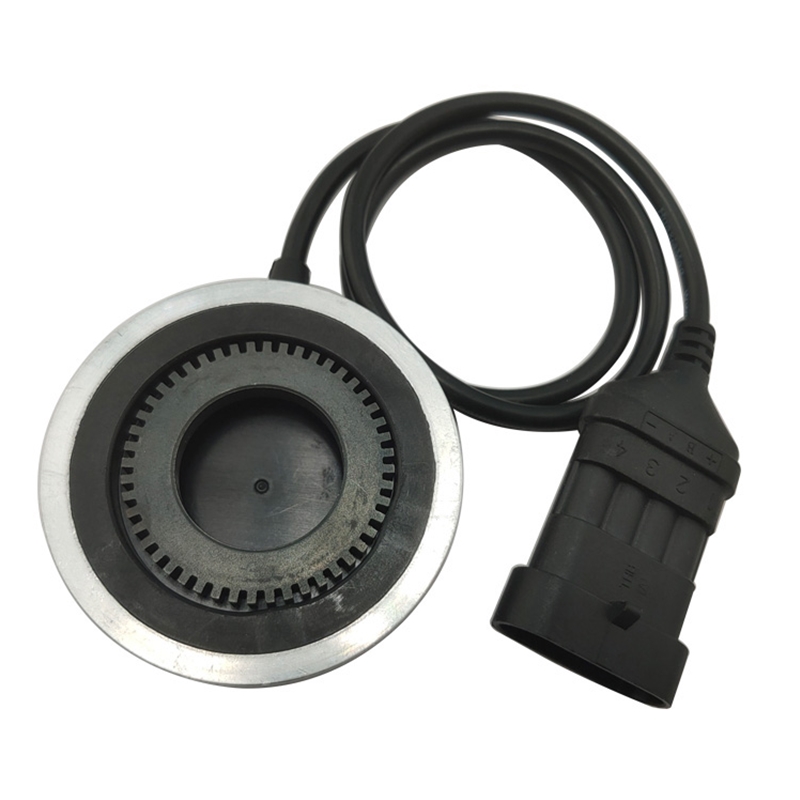

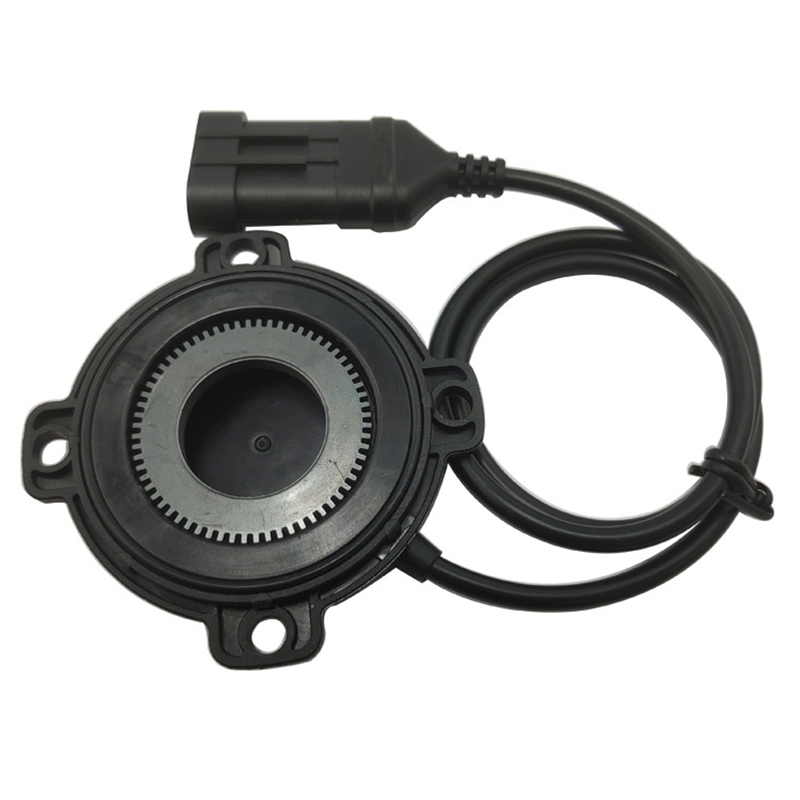

Product Introduction

The permanent magnet synchronous motor encoder mainly uses Hall or giant magnetoresistance elements

to detect the magnetic field changes caused by the rotating magnetic steel. Through analog digital signal

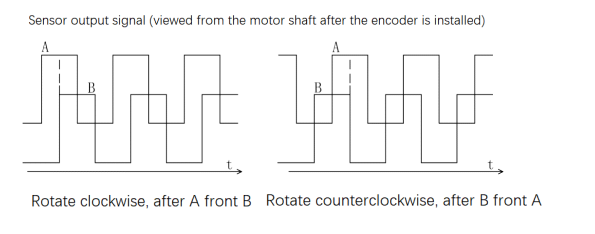

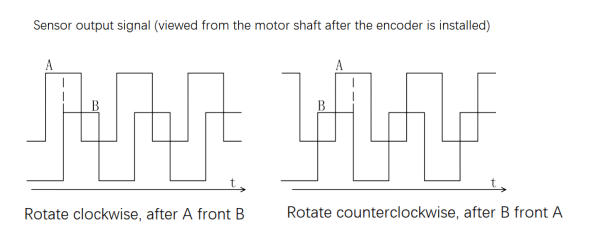

processing, the absolute position of the motor shaft is finally measured in an ABZ or PWM manner that is easy

to accept. Can be used on permanent magnet synchronous motors; The output AB orthogonal two pulse can

also be used for AC asynchronous motors. The shell is made of special materials, which have the advantages of

high strength and good temperature resistance. The supporting accessories of the product increase the sensing

distance to a certain extent, making the overall reliability, stability, and wider range of use of the product.

Advantages:

1/ Adopting international advanced technology and performance comparable to imported products

2/ The maximum speed reaches 14600rpm

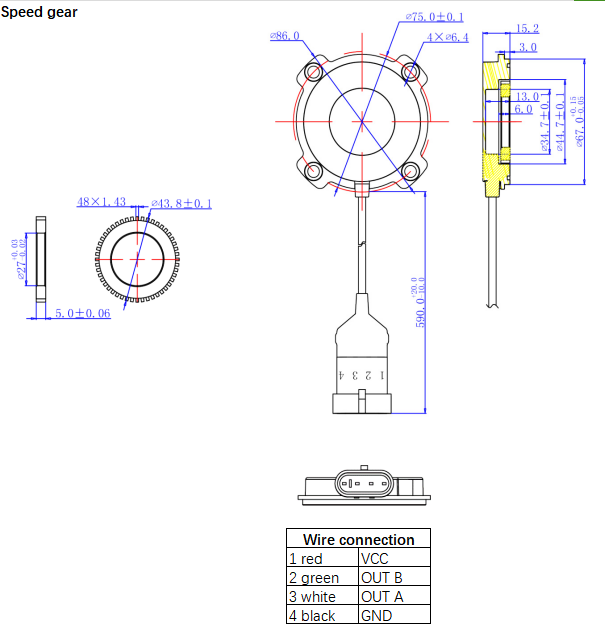

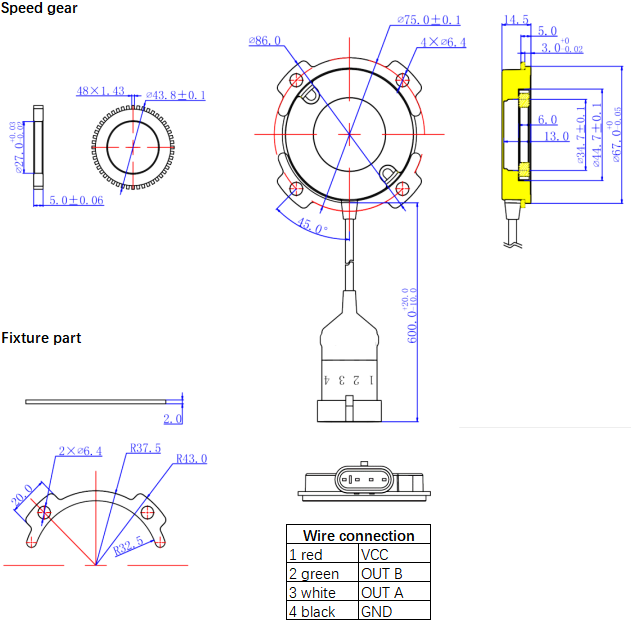

3/ Plastic flange installation shell, easy to use

4/ The product complies with ROHS standards

5/ Protection level up to IP67

6/ Can customize different external dimensions and performance parameters

Electric parameter:
